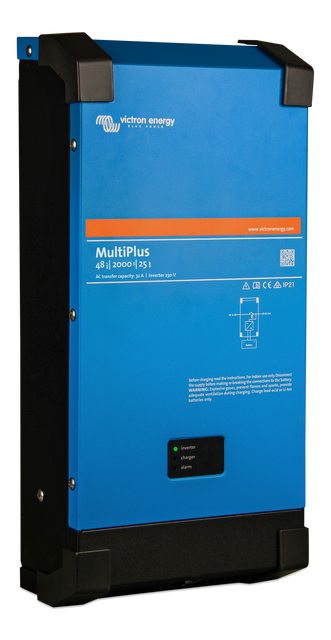

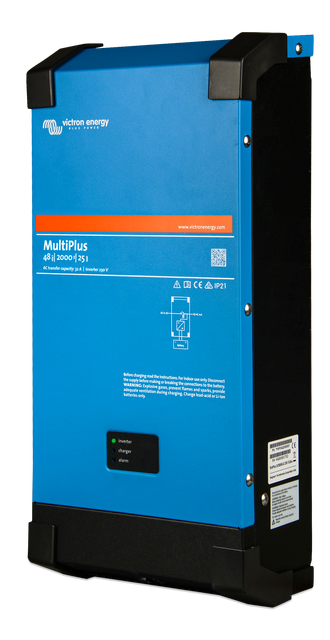

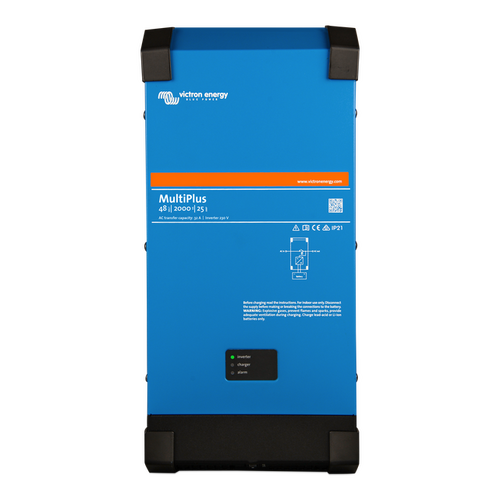

Victron MultiPlus Inverter Charger 48/2000/25-32 230V VE.Bus
SKU: PMP482200000 Learn More»
INVERTER CHARGER
Description
Victron MultiPlus Inverter Charger 48/2000/25-32 230V VE.Bus
Multifunctional:
The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
Unique PowerAssist feature:
The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Uninterrupted AC power (UPS function):
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Virtually unlimited power thanks to parallel operation:
Up to 6 units can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible.
Remote Monitoring and Control:
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your MultiPlus and system or systems locally (via LAN) or remotely (via the internet) from anywhere in the world, using the free VRM app and the free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your MultiPlus to auto starting a backup generator and more…"
Specifications:
- Cont. output power at 25°C - 1600 W
- Cont. output power at 40°C - 1400 W
- Cont. output power at 65°C - 1000 W
- Peak power - 3500 W
- Maximum efficiency - 95%
- Input voltage range - 187-265 VAC
- Input frequency - 45 – 65 Hz
- Charge voltage 'absorption' - 57.6 V
- Charge voltage 'float - 55.2 V
- Dimensions (h x w x d) - 506 x 236 x 147 mm
- Weight - 15.5 kg
.png)
Specifications
SKU PMP482200000
Brand Victron
GTIN 8719076049470
Product Category Power Inverter Chargers
Voltage 48V
Wattage (W) 2000
Input Voltage 9.5-17V, 19-3V, 38-6V
Dimensions 506 x 236 x 147mm
Peak Power (W) 3500
Weight (kg) 15.5
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What size generator should I use for charging a battery?
The below generators are the minimum recommend sizes based on an AVR generator:
- 800VA 2KVA
- 1200VA 2.5KVA
- 1600VA 3KVA
- 3000VA 5KVA
- 5000VA 8KVA
If your generator is smaller than the recommended size for your inverter/charger, you will definitely need to adjust the settings on the inverter/charger and reduce the AC input current limit, and/or a DC charge current limit to prevent overloading the generator. If you do want an inverter based generator get one that is at least 30% larger than required than an equivalent AVR based model to help prevent overloads.
-
Can these chargers take solar input?
No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.
-
How can I remotely monitor and control my devices?
You need a GX device to get remote monitoring. We recommend the Cerbo GX and an RJ45 UTP cable to connect it to the inverter. You can hardwire an ethernet connection to the unit, or connect it to a Wifi signal.
-
What size Generator can I use with the Multiplus Inverter Chargers?
The below generators are the minimum recommend sizes based on an AVR generator:
Inverter Charger Size Minimum Recommended Generator Size 240V AC Input Current Limit 800VA 2 kVa 5A 1200VA 2.5 kVa 7A 1600VA 3 kVa 10A 3000VA 5 kVa 16A 5000VA 8 kVa 25A If your generator is smaller than the recommended size for your inverter/charger, you will definitely need to adjust the settings on the inverter/charger and reduce the AC input current limit, and/or a DC charge current limit to prevent overloading the generator. If you do want an inverter based generator get one that is at least 30% larger than required than an equivalent AVR based model to help prevent overloads.
