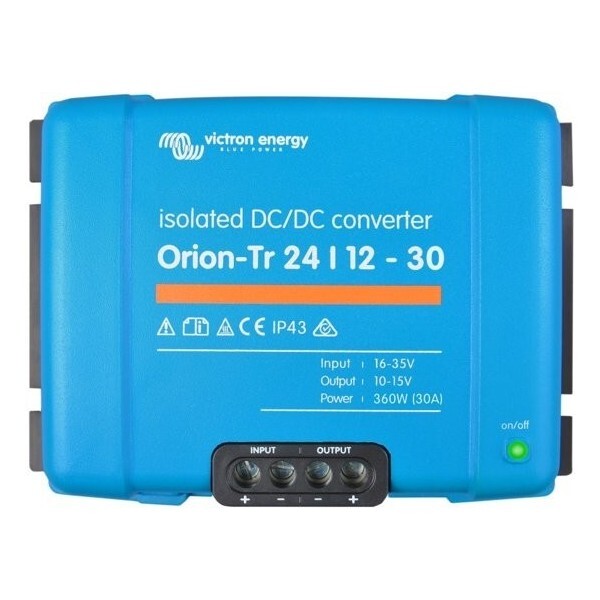

Victron Orion-Tr 24/12V 30A DC to DC Converter with Galvanic Isolation
SKU: ORI241240110 Learn More»
Free Shipping
Description
Victron Orion-Tr 24/12V 30A DC to DC Converter with Galvanic Isolation
Remote on-off:
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger:
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current:
An unlimited number of units can be connected in parallel.
An unlimited number of units can be connected in parallel.
IP43 protection:
When installed with the screw terminals oriented downwards.
When installed with the screw terminals oriented downwards.
Screw terminals:
No special tools needed for installation.
No special tools needed for installation.
Input fuse:
On 12V and 24V input models only.
On 12V and 24V input models only.
Specifications:
- Input voltage range (1) - 20-35V
- Under voltage shut down - 14V
- Under voltage restart - 15V
- Nominal output voltage - 24.2V
- Output voltage adjusts range - 20-30V.
- Output voltage tolerance - +/- 0,2V
- Output noise - 2mV RMS
- Cont. output current at nominal output voltage and 40°C - 30A
- Maximum output current (10 s) at nominal output voltage minus 20% - 45A
- Short circuit output current - 60A
- Cont. output power at 25°C - 430W
- Cont. output power at 40°C - 360W
- Efficiency - 88%
- Offload current - < 100mA
- Galvanic isolation 200V dc between input, output and case
- Operating temperature range -20 to +55°C (derate 3% per °C above 40°C)
- Humidity Max. 95% non-condensing
- DC connection Screw terminals
- Maximum cable cross-section 16 mm² (AWG6)
- Weight 12V input and/or 12V output models: 1.8 kg (3 lb)
- Dimensions dxwxh 12V input and/or 12V output models: 80 x 186 x 130 mm
.png)
Show More
Specifications
SKU ORI241240110
Brand Victron
GTIN 8719076038849
Product Category Converters
Current (A) 30
Dimensions (D x H x W) 70 x 130 x 186 mm
Weight (kg) 1.8
DC Output Voltage 10-15V
DC Input Voltage 20-35V
Efficiency 0.88
NOTE: see full product specifications & further product info in the Description section on this page.
