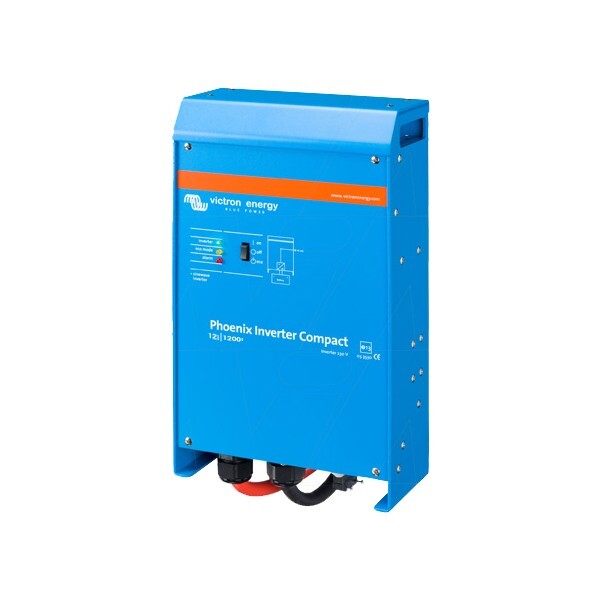

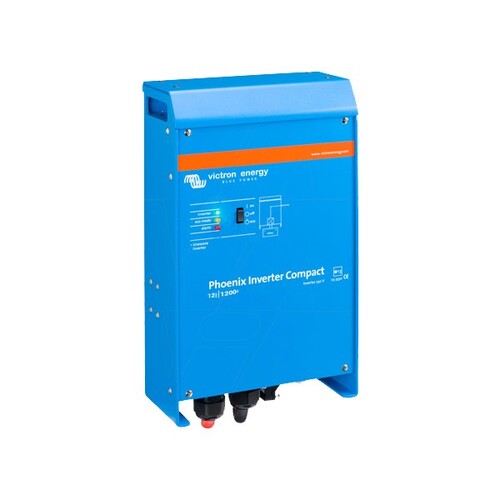

Victron Phoenix Inverter Compact 12V / 1200VA
SKU: CIN121220000 Learn More»
INVERTER
Description
Victron Phoenix Inverter Compact 12/1200
Specifications:
| Wattage | 1000W |
|---|---|
| Peak Power | 2400 |
| Output Voltage and Frequency | Output voltage: 230 VAC ±2% Frequency: 50 Hz ± 0,1% (1) |
| Protection | a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) 230 V AC on inverter output g) input voltage ripple too high |
| Input Voltage | 9,5 – 17V 19 – 33V 38 – 66V |
| Operating Temperature Range | -40 to +65ºC (fan assisted cooling) |
| Humidity | Max 95% |
| Dimensions (LxWxH) mm | 110 x 214 x 375 |
| Battery-connection | battery cables of 1.5 meter included |
| Protection category | IP 21 |
| Efficiency | 94 |
| Net Weight (kg) | 10.0 Kg |
Features:
SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.
Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.
Virtually unlimited power thanks to parallel and 3-phase operation capability
Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3 phase configuration is also possible.
To transfer the load to another AC source: the automatic transfer switch
If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).
Computer interface
All models have a RS-485 port. All you need to connect to your PC is Victron's MK3-USB VE.Bus to USB interface. Together with Victron's VEConfigure software, which can be downloaded free of charge from Victron's website, all parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerized monitoring and control systems.
New applications of high power inverters
The possibilities of paralleled high power inverters are truly amazing.
Specifications
SKU CIN121220000
Brand Victron
GTIN 8719076021629
Product Category Power Inverters
Voltage 12V
Wattage (W) 1000
Dimensions 745 x 214 x 110 mm (WxHxD)
Peak Power (W) 2400
Weight (kg) 10
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Can I run an inverter from AGM or Gel batteries?
The short answer is yes. People have been running 240V inverters from AGM batteries long before lithium was around. But people have traditionally used a lot lower AC current devices when caravan and camping than they do today.
Inverters were never intended to run air conditioners, microwaves , coffee machines and the like.....that is until lithium came into the RV market. For low current devices (under 600W) it is fine to connect an inverter to your AGM battery system. AGM batteries can put out low current for a long period of time. When you need to go near 1000W or more , then you should consider a lithium battery.
You can connect an inverter to AGM batteries but you need a lot larger size batteries than lithium (to cope with the high current). A general rule of thumb for AGM or GEL batteries is a 1000W inverter should be coupled with 2 x 120A batteries and a 2000W inverter will need 3 x 120Ah batteries.
Conversely, some 100Ah lithium batteries (Enerdrive, Invicta) can power a 1000W inverter and some 200Ah lithium batteries (Enerdrive) will power a 2000W inverter.
