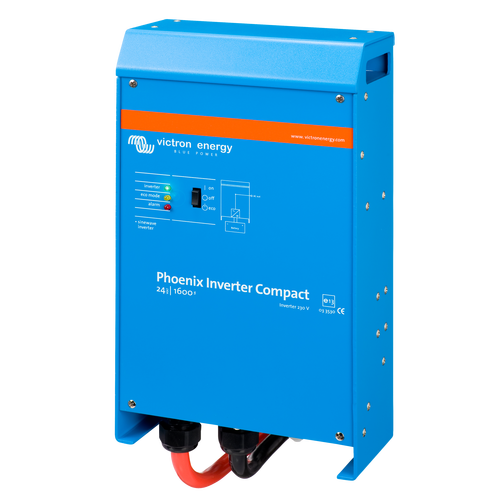

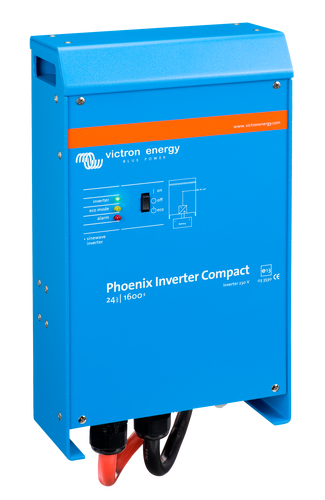

Victron Phoenix Inverter Compact 24V / 1600VA
SKU: CIN241620000 Learn More»
Description
Victron Phoenix Inverter Compact 24/1600
Specifications:
| Wattage | 1300W |
|---|---|
| Peak Power | 3000 |
| Output Voltage and Frequency | 230 VAC ±2% Frequency: 50 Hz ± 0,1% (1) |
| Protection | a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) 230 V AC on inverter output g) input voltage ripple too high |
| Input Voltage | 19 – 33V |
| Operating Temperature Range | -40 to +65ºC (fan assisted cooling) |
| Humidity | Max 95% |
| Dimensions (LxWxH) mm | 375 x 214 x 110 (H x W x D) |
| Battery-connection | Battery cables of 1.5 meter included |
| Protection category | IP21 |
| Continuous Power at 25°C, Cos Phi 1 | 1300W |
| Continuous Power at 40°C, Cos Phi 1 | 1200W |
| Efficiency | 94% |
| Net Weight (kg) | 10.0 Kg |
Features:
SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.
Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.
Virtually unlimited power thanks to parallel and 3-phase operation capability
Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3 phase configuration is also possible.
To transfer the load to another AC source: the automatic transfer switch
If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).
Computer interface
All models have a RS-485 port. All you need to connect to your PC is Victron's MK3-USB VE.Bus to USB interface. Together with Victron's VEConfigure software, which can be downloaded free of charge from Victron's website, all parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerized monitoring and control systems.
New applications of high power inverters
The possibilities of paralleled high power inverters are truly amazing.
Specifications
SKU CIN241620000
Brand Victron
GTIN 8719076021667
Product Category Power Inverters
Voltage 24V
Wattage (W) 1300
Dimensions 375 x 214 x 110 mm (WxHxD)
Peak Power (W) 3000
Weight (kg) 10
NOTE: see full product specifications & further product info in the Description section on this page.
