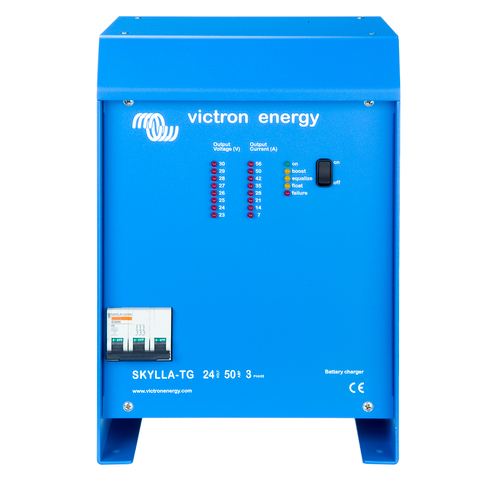

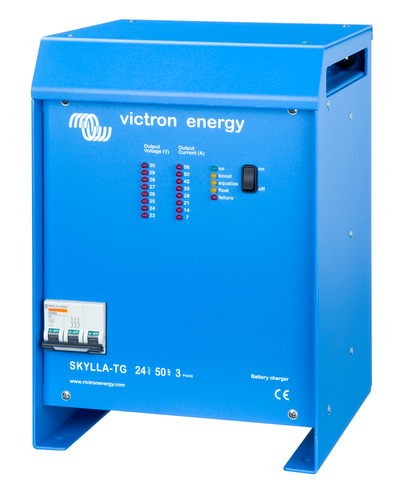

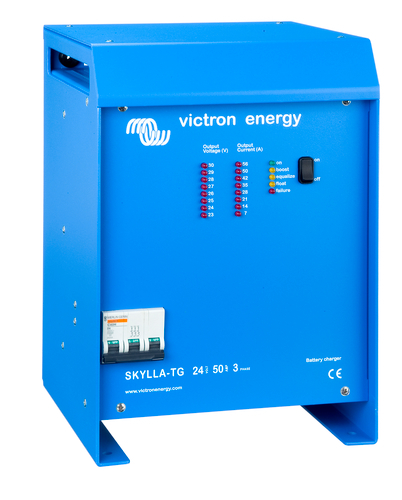

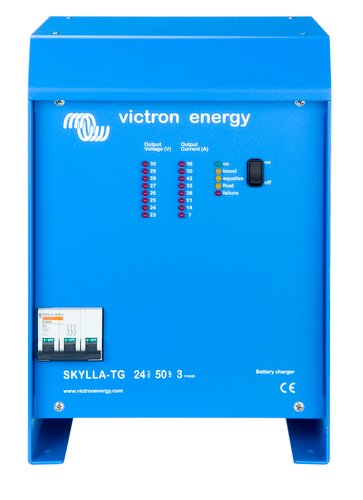

Victron Skylla TG 24V 50A 3 Phase

Description

Victron Skylla TG 24V 50A 3 Phase

One full rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows measuring battery temperature and compensating charge voltage accordingly.

Perfect chargers for any type of battery
Charge voltage can be precisely adjusted to suit any sealed or unsealed battery system. In particular, sealed maintenance free batteries must be charged correctly in order to ensure a long service life. Overvoltage will result in excessive gassing and venting of a sealed battery. The battery will dry out and fail.

Suitable for AC and DC supply (AC-DC and DC-DC operation)
Except for the 3 phase input models, the chargers also accept a DC supply.

Controlled charging
Every TG charger has a microprocessor, which accurately controls the charging in three steps. The charging process takes place in accordance with the IUoUo characteristic and charges more rapidly than other processes.

Use of TG chargers as a power supply
As a result of the perfectly stabilized output voltage, a TG charger can be used as a power supply if batteries or large buffer capacitors are not available.

Two outputs to charge 2 battery banks (24V models only)
The TG chargers feature 2 isolated outputs. The second output, limited to approximately 4 A and with a slightly lower output voltage, is intended to top up a starter battery.

To increase battery life: temperature compensation
Every Skylla TG charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries which otherwise might be overcharged and dry out due to venting.

Battery voltage sense
In order to compensate for voltage loss due to cable resistance, TG chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage.

Specifications:

• Input Voltage (V AC) 3 x 400
• Input Voltage Range (V AC) 320 - 450
• Input Voltage Range (V DC) n.a.
• Frequency (Hz) 45-65 Hz or DC
• Power Factor 1
• Charge Voltage 'Absorption' (V DC) 28.5
• Charge Voltage 'Float" (V DC) 26.5
• Charge Current House Batt. 50
• Charge Current Starter Batt. 4
• Charge Characteristics IUoUo (three step)
• Battery Capacity (Ah) 250-500
• Temperature Sensor Yes
• Can be used as a power supply Yes
• Remote Alarm Potential free contacts 60V / 1A (1x NO and 1x NC)
• Forced Cooling Yes
• Protection a, b, c, d
• Operating Temperature Range -40 to +50°C (-40 - 122°F) Full output current up to 40°C
• Humidity (Non-condensing) max 95%
• Material & Colour aluminium (blue RAL 5012)
• Battery-Connection M8 studs
• 230 VAC-Connection screw-clamp 2,5 mm² (AWG 6)
• Protecttion Category IP 21
• Weight kg 13
• Dimensions 365x250x257 mm
• Safety EN 60335-1, EN 60335-2-29
• Emission EN 55014-1, EN 61000-3-2
• Immunity EN 55014-2, EN 61000-3-3
