Victron Smart Battery Protect 12/24V-100A
SKU: BPR110022000 Learn More»
Description

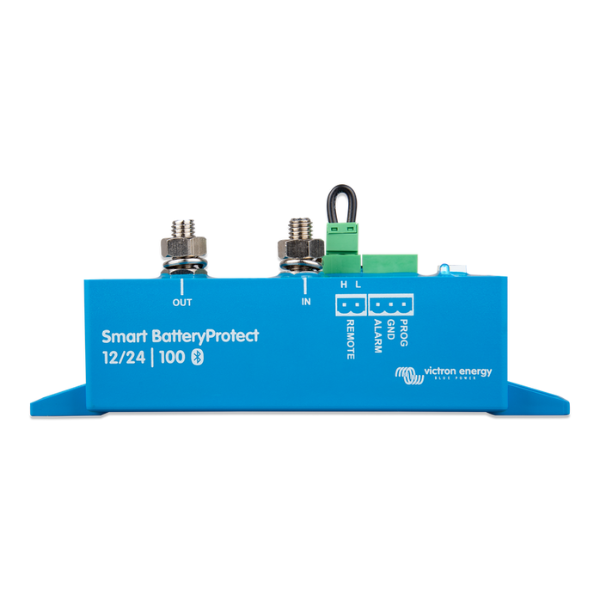

Victron Smart Battery Protect 12/24V-100A
The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set.
Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual).
If required, Bluetooth can be disabled.
The Smart BatteryProtect is not designed for reverse currents from charging sources.
Specifications:
- Maximum continuous load current* - 100A
- Peak current (during 30 seconds) - 600A
- Operating voltage range - 6 –35V
- Current consumption BLE On - When on: 1,4 mA When off or low voltage shutdown: 0,9 mA | BLE Off - When on: 1,2 mA When off or low voltage shutdown: 0,7 mA
- Alarm output delay - 12 seconds
- Maximum load on alarm output - 50 mA (short circuit proof)
- Load disconnect delay - 90 seconds (immediate if triggered by the VE.Bus BMS)
- Load reconnect delay - 30 seconds
- Default thresholds - Disengage: 10,5V or 21V Engage: 12V or 24V
- Operating temperature range - Full load: -40°C to +40°C (up to 60% of nominal load at 50°C)
- IP rating Electronics: - IP67 (potted) | Connections: IP00
- Connection - M8
- Weight 0.5 kg
- Dimensions (hxwxd) - 59 x 42 x 115 mm
.png)
Specifications
SKU BPR110022000
Brand Victron
GTIN 8719076041245
Product Category Batteries Other
Amps 100A
Temperature Range Full load -40°C to +40°C (up to 60% of nominal load at 50°C)
Weight (kg) 0.5
NOTE: see full product specifications & further product info in the Description section on this page.
