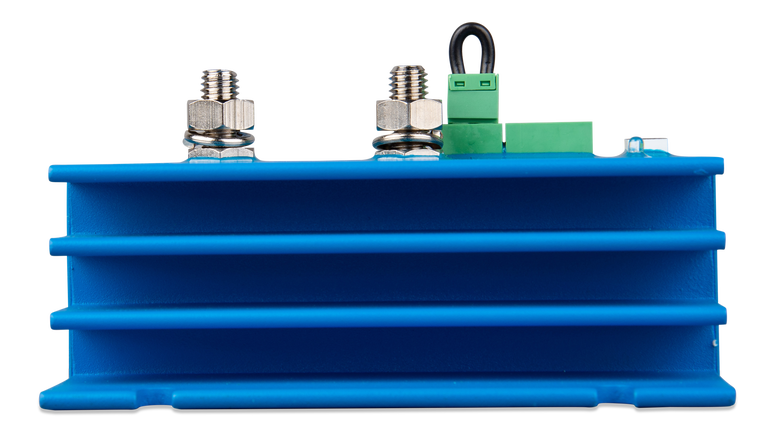

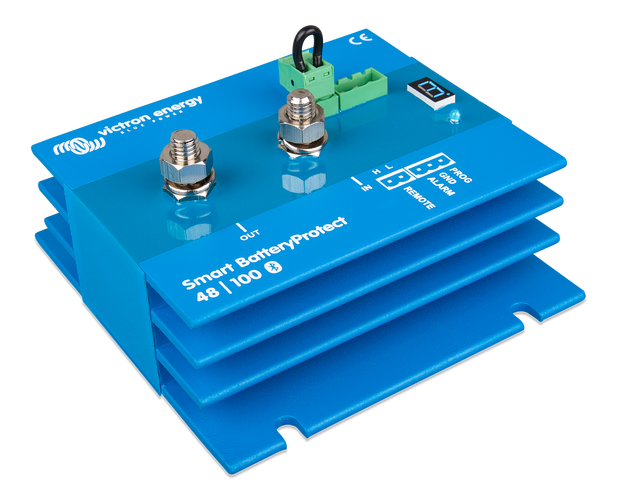

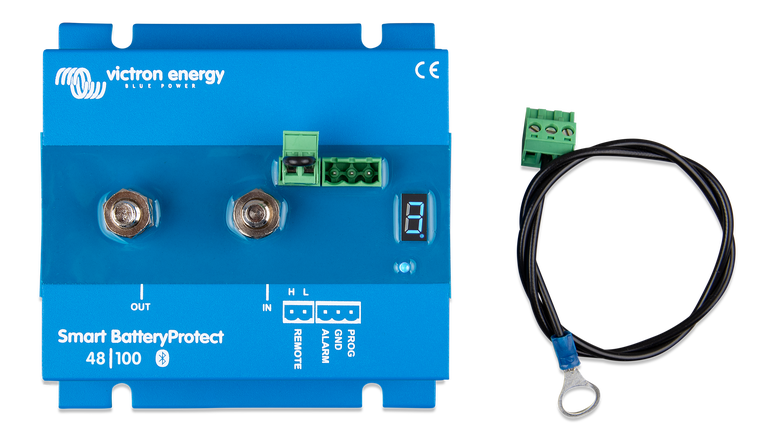

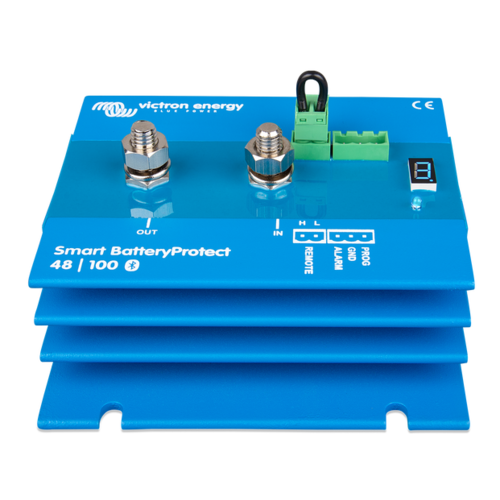

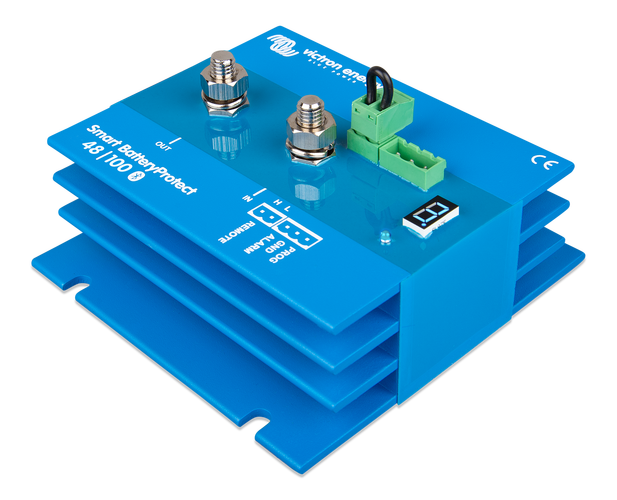

Victron Smart Battery Protect 48V-100A
SKU: BPR110048000 Learn More»
Description
Victron Smart Battery Protect 48V-100A
The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set.
Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual).
If required, Bluetooth can be disabled.
The Smart BatteryProtect is not designed for reverse currents from charging sources.
Specifications:
- Maximum cont. load current* - 100A
- Peak current - 250 A
- Operating voltage range- 24 – 70 V
- Current consumption - BLE on When on: 1,9mA When off or low voltage shutdown: 1,7mA | BLE off When on: 1,7mA When off or low voltage shutdown: 1,6mA
- Alarm output delay - 12 seconds
- Max. load on alarm output - 50mA (short circuit proof)
- Load disconnect delay - 90 seconds (immediate if triggered by the VE.Bus BMS)
- Default thresholds - Disengage: 42V Engage: 48V
- Operating temperature range - Full load: -40°C to +40°C (up to 60% of nominal load at 50°C)
- IP rating - Electronics: IP67 (potted) Connections: IP00
- Connection- M8
- Weight - 0.8kg
- Dimensions (hxwxd) - 62 x 123 x 120 mm
.png)
Specifications
SKU BPR110048000
Brand Victron
GTIN 8719076041252
Product Category Batteries Other
Amps 100A
Temperature Range Full load -40°C to +40°C (up to 60% of nominal load at 50°C)
Weight (kg) 0.8
NOTE: see full product specifications & further product info in the Description section on this page.
