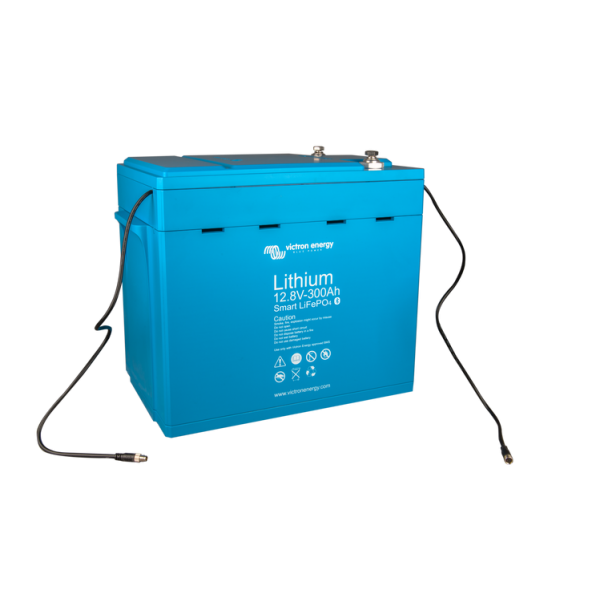

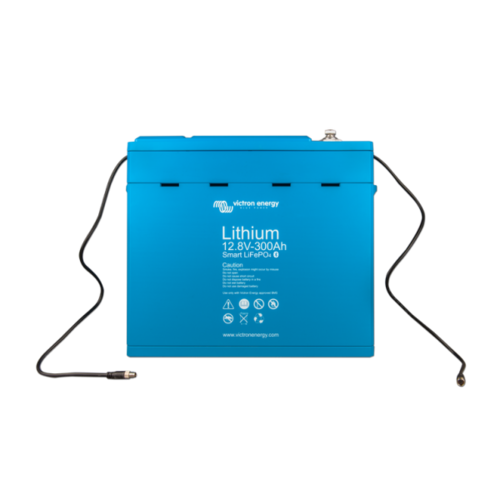

Victron Smart LiFePO4 Lithium Battery 12.8V/330Ah
SKU: BAT512132410 Learn More»
CALCULATE SHIPPING:
Accessories List:
.png)
.png)
Description
Victron Smart LiFePO4 Lithium Battery 12.8V/330Ah
Features:
- With integrated cell balancing
- Can be parallel and series connected
- Bluetooth app available to monitor cell voltage and temperature
Why lithium-iron-phosphate
Lithium-iron-phosphate (LiFePO4 or LFP) is the safest of the mainstream li-ion battery types. The nominal voltage of a LFP cell is 3,2V (lead-acid: 2V/cell). A 12,8V LFP battery therefore consists of 4 cells connected in series; and a 25,6V battery consists of 8 cells connected in series.
Rugged
A lead-acid battery will fail prematurely due to sulfation:
- If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
- If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime).
A LFP battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of LFP compared to lead-acid. Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency.
LFP is therefore the chemistry of choice for very demanding applications.
Efficient
In several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance. The round trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average leadacid battery is 80%. The round trip energy efficiency of a LFP battery is 92%. The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy is required (battery operating in 70% to 100% charged state). In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.
Size and weight
Saves up to 70% in space
Saves up to 70% in weight
Expense
LFP batteries are expensive when compared to lead-acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency.

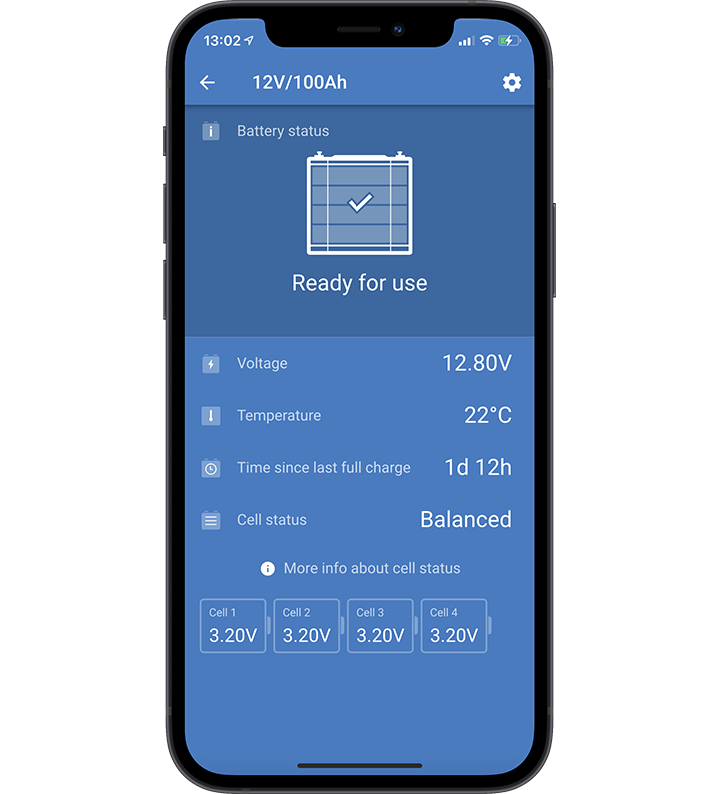

Bluetooth
With Bluetooth cell voltages, temperature and alarm status can be monitored.
Very useful to localize a (potential) problem, such as cell imbalance.
Victron LFP batteries have integrated cell balancing and cell monitoring. Up to 5 batteries can be paralleled and up to four batteries can be series connected,so that a 48V battery bank of up to 1500Ah can be assembled. The cell balancing/monitoring cables can be daisychained and must be connected to a Battery Management System (BMS).
Battery Management System (BMS)
The BMS will:
- Disconnect or shut down the load whenever the voltage of a battery cell decreases to less than 2,5V.
- Stop the charging process whenever the voltage of a battery cell increases to more than 4,2V.
- Shut down the system whenever the temperature of a cell exceeds 50°C.
Specifications:
| Amp Hours (Ah) | 330.0 Ah |
|---|---|
| Battery Voltage | 12.8V |
| Humidity | 95% |
| Dimensions (LxWxH mm) | 347 x 425 x 274 (H x W x D) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 330Ah |
| Max. Continuous Discharge | 400A |
| Protections | IP22 |
| Cycle Life (DOD – 80% under controlled conditions) | 2500 Cycles |
| Battery Charge Temperature | +5°C to +50°C |
| Standby (Float) Voltage | 13,5V/27V |
| Maximum Charge Current | 400A |
| Recommended Charge Current for Maximum Life | ≤150A |
| Battery Discharge Temperature | -20°C to +50°C |
| Charging Voltage | Between 14V/28V and 14,4V/28,8V (14,2V/28,4V recommended) |
| Net Weight (kg) | 51.0 Kg |
| Manufacturers Warranty | 3 Years |
Specifications
SKU BAT512132410
Brand Victron
GTIN 8719076054849
Product Category Batteries
Battery Voltage 12V
Amp Hours (Ah) 330/
Battery Length (mm) 274
Battery Width (mm) 425
Battery Height (mm) 347
Battery Weight (kg) 51
Cycle Life (DOD – 80% under controlled conditions) 2500 Cycles
Battery Charge Temperature +5°C to +50°C
Standby (Float) Voltage 13,5V/27V
Maximum Charge Current 400A
Battery Discharge Temperature -20°C to +50°C
Nominal Capacity 330Ah
Humidity 95%
Nominal Voltage 12.8V
Recommended Charge Current for Maximum Life ≤150A
Maximum Continuous Discharge Current 400A
Protections IP22
Charging Voltage Between 14V/28V and 14,4V/28,8V (14,2V/28,4V recommended)
Weight (kg) 51.0 Kg
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What size battery do I need for my caravan?
Great question! Your deep cycle battery for your caravan will be a minimum of 100 Amp Hours (Ah).
The average size for a Caravan is 200Ah. Usually, 2 x 100Ah connected in Parallel. However, if your budget allows to upgrade to a Lithium battery you can get a lot more power for the size of the battery. For example, a 200Ah lithium battery can be equivalent to up to 360 Ah of an AGM battery.
To work out exactly what size you require you need to first look at the load you are planning on drawing. The load should be calculated in Amps per hour, or Amp Hours (Ah). Batteries are rated in Amp Hours (Ah) as well.
So, if you are drawing a 50Ah per day, a 100Ah AGM battery can provide power for about 1 day as you do not want to draw more than 50% from your battery. However, it is not always easy to find what each appliance draws. Some popular examples are following:
- 150L 12V Fridge = 2.5 Amps per hour (2.5Ah) - runs for 24 hours a day
- 12V Water Pump = 3.5 Amps per hour (3.5Ah) - only runs for 1 hour a day
- Phone Charger = 0.5 Amps per hour (0.5Ah) - Maybe 4 hours per day
- 12V Fan = 4 Amps per hour (4Ah) - Maybe 4 hours per day
Then you will need to factor in how much charge you are putting in Daily. The charge comes in the way of Solar and in car charging via a DC to DC charger.
Ideally you want enough charge input per day to cover the load drawn, then enough battery storage to last 2 - 3 days without charge.
-
What is best - AGM or lithium battery?
The answer is simple. Lithium is a better product than AGM.
Lithium is lighter, more compact, and powerful, it will also last longer.
However, a lithium battery will cost more, because it is a highly sort after product. Almost everything that has a battery nowadays will have a lithium battery. Mobile phone, Electric Car, Electric Bike and Skateboard just to name a few.
There are situations where you can get away with an AGM battery. If you only need about 100ah (most 4 x 4 set ups), you can purchase 1 x 100ah battery and a battery box and away you go.
However, once you start getting into the larger amperages (200+) it really makes more sense to turn to lithium.
-
How do I charge my caravan battery?
There are three ways to charge your caravan Battery. Either:
- AC to DC - This is using a traditional battery charger that plugs into mains power.
- DC to DC - This is a battery charger connected between the start battery of your tow vehicle and the Caravan Battery. This will charge the battery whilst driving.
- Solar - Solar panels on your roof can be connected to a solar charge controller then to your Caravan Battery.
-
How much solar do I need to keep my caravan battery charged?
Ideally, you want use as much solar as you can fit on the roof. Extra portable solar panels are also good idea if you want to park your van in the shade and run a portable panel from a lead in the sun - please see our solar range here.
Solar is cheap relative to the rest of your system, and it provides so much of your power when you are camping off grid.
However, the solar required depends on the load. Please feel free to contact our team for any specific questions on your battery - 1800 787 278!
