Victron Smart Solar MPPT 150/100-MC4 VE.Can Charge Controller

Description

Victron Smart Solar MPPT 150/100-MC4 VE.Can Charge Controller

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

MPPT: Ultra Fast Maximum Power Point Tracking

The MPPT VE.Can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.

The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium and others.

Control Your Charger Remotely

The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.

Daisy Chain Additional Units

The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply “daisy chained” to each other with a single RJ45 cable between the individual units.

When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.

Remote Monitoring and Control

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).

For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the  GlobalLink 520.

SmartSolar Control Display (Optional Accessory)

The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device.

Specifications:

• Battery voltage: 12/24/48V Auto Select (36V: manual)
• Rated charge current: 100A
• Nominal PV power, 12V 1a,b): 1450W
• Nominal PV power, 24V 1a,b: 2900W
• Nominal PV power, 36V 1a,b): 4350W
• Nominal PV power, 48V 1a,b) : 5800W
• Max. PV short circuit current 2): 70A (max 30A per MC4 conn.)
• Maximum PV open circuit voltage: 150V absolute maximum coldest conditions 145V start-up and operating maximum
• Maximum efficiency: 98%
• Self-consumption: Less than 35mA @ 12V / 20mA @ 48V
• Charge voltage 'absorption' Default setting:14,4 / 28,8 / 43,2 / 57,6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
• Charge voltage 'float' Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
• Charge voltage 'equalization' Default setting: 16,2V / 32,4V / 48,6V / 64,8V (adjustable)
• Charge algorithm: multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm
• Temperature compensation: -16 mV / -32 mV / -64 mV / °C
• Protection: PV reverse polarity / Output short circuit / Over temperature
• Operating temperature: -30 to +60°C (full rated output up to 40°C)
• Humidity: 95%, non-condensing
• Maximum altitude: 5000m (full rated output up to 2000m)
• Environmental condition: Indoor, unconditioned
• Pollution degree: PD3
• Data communication: VE.Can, VE.Direct and Bluetooth
• Remote on/off: Yes (2 pole connector)
• Programmable relay: DPST AC rating: 240VAC / 4A DC rating: 4A up to 35VDC, 1A up to 60VDC
• Parallel operation: Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units)
• Colour:  Blue (RAL 5012)
• PV terminals 3):  35 mm² / AWG2 (Tr models) Three pairs of MC4 connectors (MC4 models)
• Battery terminals: 35mm² / AWG2
• Protection category: IP43 (electronic components), IP22 (connection area)
• Weight: 4.5kg
• Dimensions (h x w x d) in mm: Tr models: 216 x 295 x 103 | MC4 models: 246 x 295 x 103

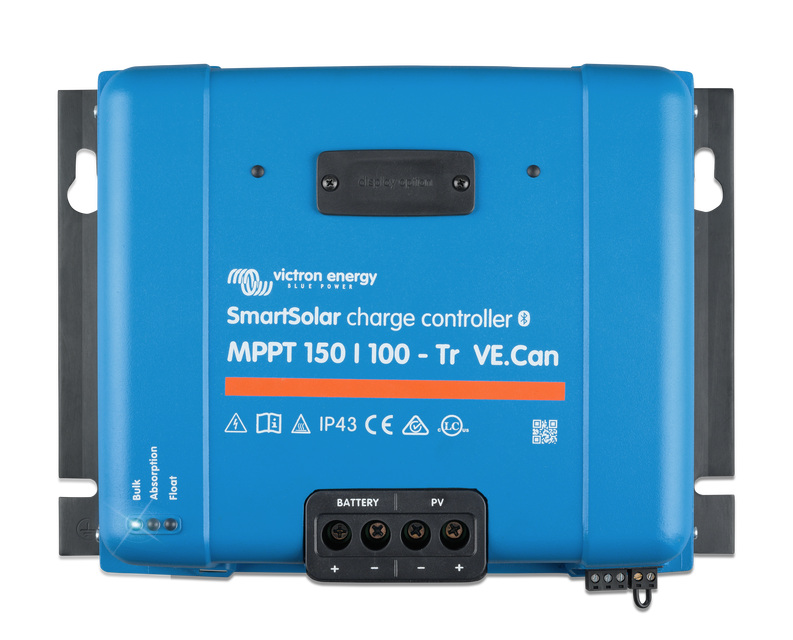

Please note that the images displayed are not of this model
