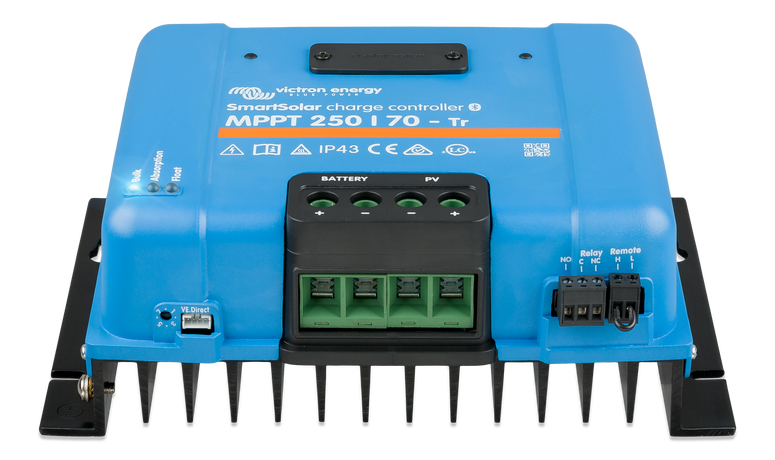

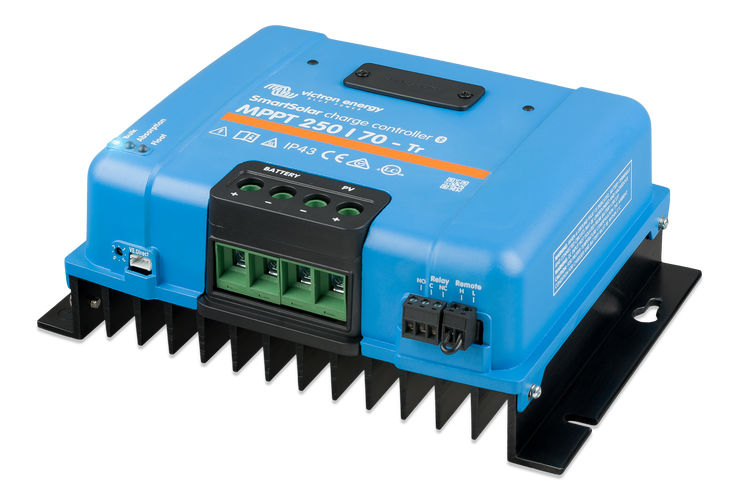

Victron Smart Solar MPPT 250/70-Tr Charge Controller
SKU: SCC125070221-310 Learn More»
SCC125070221
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description

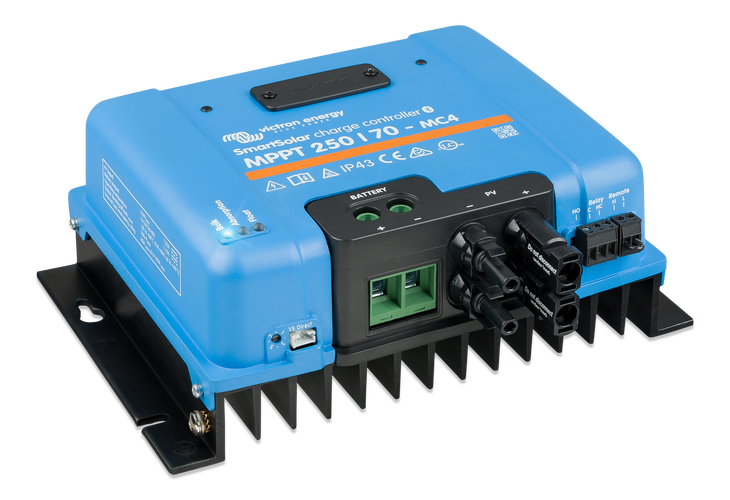

Victron Smart Solar MPPT 250/70 Charge Controller - Tr or MC4 Mode
Solar charge controller
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Optional SmartSolar Control Display
By adding the SmartSolar Control Display you will be able to check the status of your Charger and battery-storage at a glance. Simply plug it into the face of your MPPT charger to provide you with real-time monitoring and set-up capabilities.
Specifications:
| Battery voltage | 12 / 24 / 48V Auto Select (36V: manual) |
| Rated charge current | 70A |
| Nominal PV power, 12V 1a,b) | 1000W |
| Nominal PV power, 24V 1a,b) | 2000W |
| Nominal PV power, 36V 1a,b) | 3000W |
| Nominal PV power, 48V 1a,b) | 4000W |
| Max. PV short circuit current 2) | 35A (max 30A per MC4 conn.) |
| Maximum PV open circuit voltage |
250V absolute maximum coldest conditions 245V start-up and operating maximum |
| Maximum efficiency | 99% |
| Self-consumption | Less than 35mA @ 12V / 20mA @ 48V |
| Charge voltage 'absorption' |
Default setting: 14.4 / 28.8 / 43.2 / 57.6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
| Charge voltage 'float' |
Default setting: 13.8 / 27.6 / 41.4 / 55.2V (adjustable: rotary switch, display, VE.Direct or Bluetooth) |
| Charge voltage 'equalization' | Default setting: 16.2V / 32.4V / 48.6V / 64.8V (adjustable) |
| Charge algorithm | multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm |
| Temperature compensation | -16 mV / -32 mV / -64 mV / °C |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
| Maximum altitude | 5000m (full rated output up to 2000m) |
| Environmental condition | Indoor, unconditioned |
| Pollution degree | PD3 |
| Data communication port | VE.Direct or Bluetooth |
| Remote on/off | Yes (2 pole connector) |
| Programmable relay | DPST AC rating: 240VAC / 4A DC rating: 4A up to 35VDC, 1A up to 60VDC |
| Parallel operation | Yes: up to 10 units can be synchronized with Bluetooth |
| Colour | Blue (RAL 5012) |
| PV terminals 3) |
35 mm² / AWG2 (Tr models) Two pairs of MC4 connectors (MC4 models) |
| Battery terminals | 35mm² / AWG2 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 3 kg |
| Dimensions (d x w x h) in mm |
Tr models: 95 x 250 x 185 mm MC4 models: 95 x 250 x 215 mm |
Please note the images displayed are not of the correct model
.png)
Specifications
SKU SCC125070221-310
Brand Victron
GTIN 8719076050865
Product Category Solar Charge Controllers
Amps 70A
Operating temperature range Äì30¬∞C to +60¬∞C (full rated output up to 40¬∞C)
Dimensions Tr models 95 x 250 x 185 | MC4 models 95 x 250 x 215 (D x W x H)
Weight (kg) 3
Charge Voltage Default Setting 14.4 / 28.8 / 43.2 / 57.6V (adjustable with rotary switch, display, VE.Direct or Bluetooth)
Nominal Power 12V 1000W | 24V 2000W | 36V 3000W |48V 4000W
Charge Current (A) 70
Voltage (V) 12/24/48V Auto Select (36V manual)
Protection Battery reverse polarity (fuse, not user accessible), PV reverse polarity, Output short circuit, and Over temperature
NOTE: see full product specifications & further product info in the Description section on this page.
