Victron SmartShunt 500A/50mV IP65
SKU: SHU065150050 Learn More»
Description

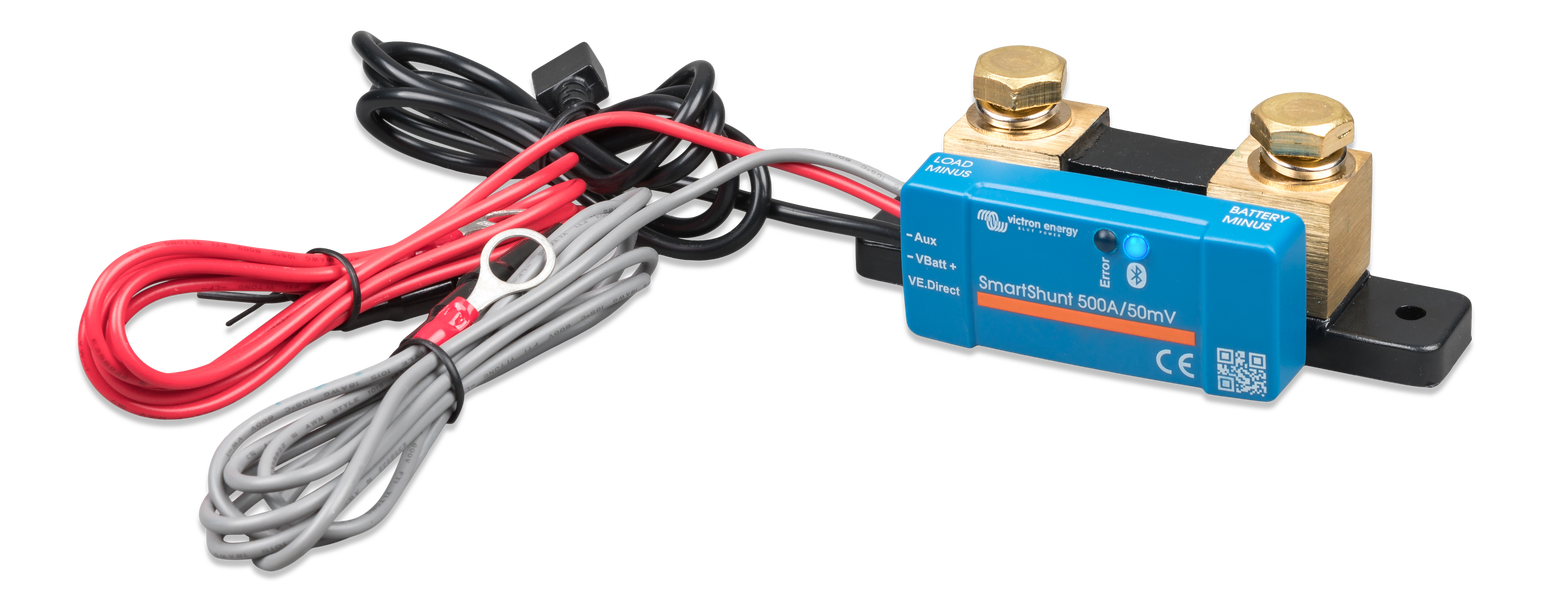

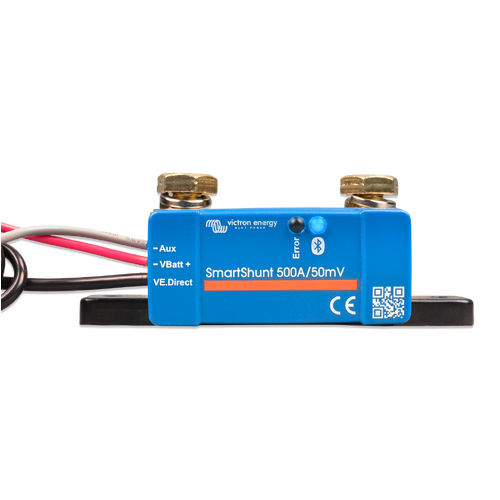

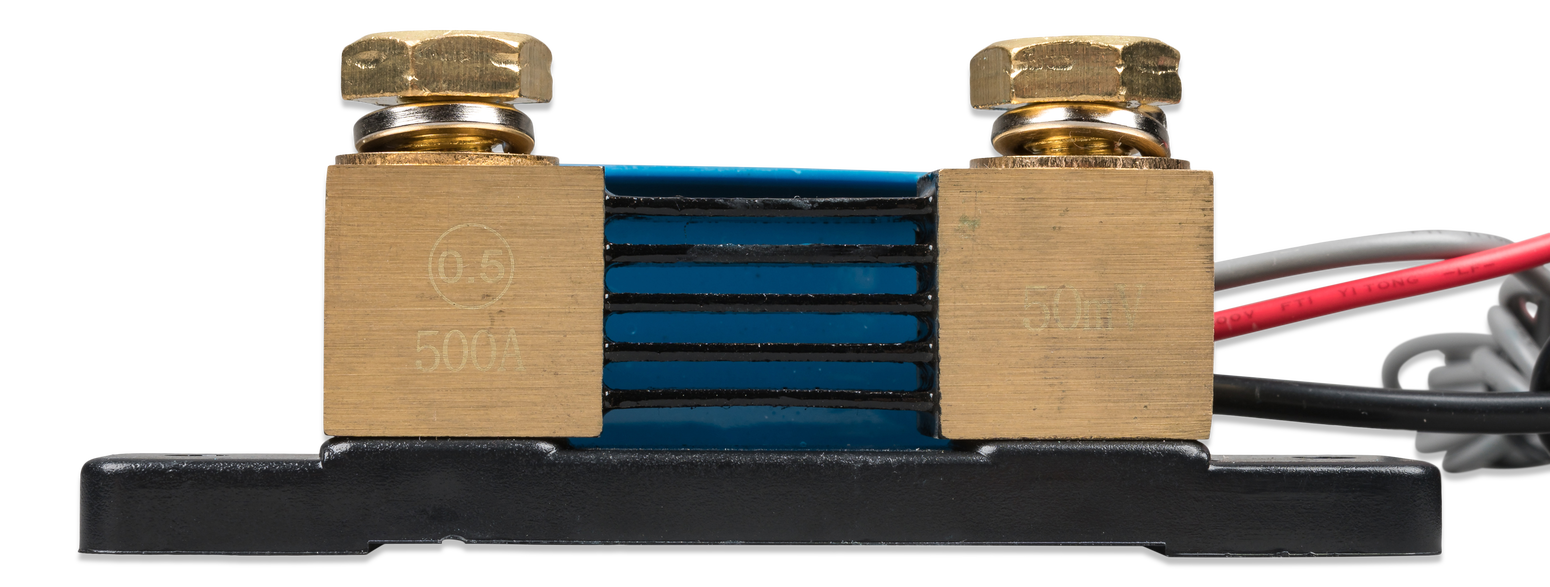

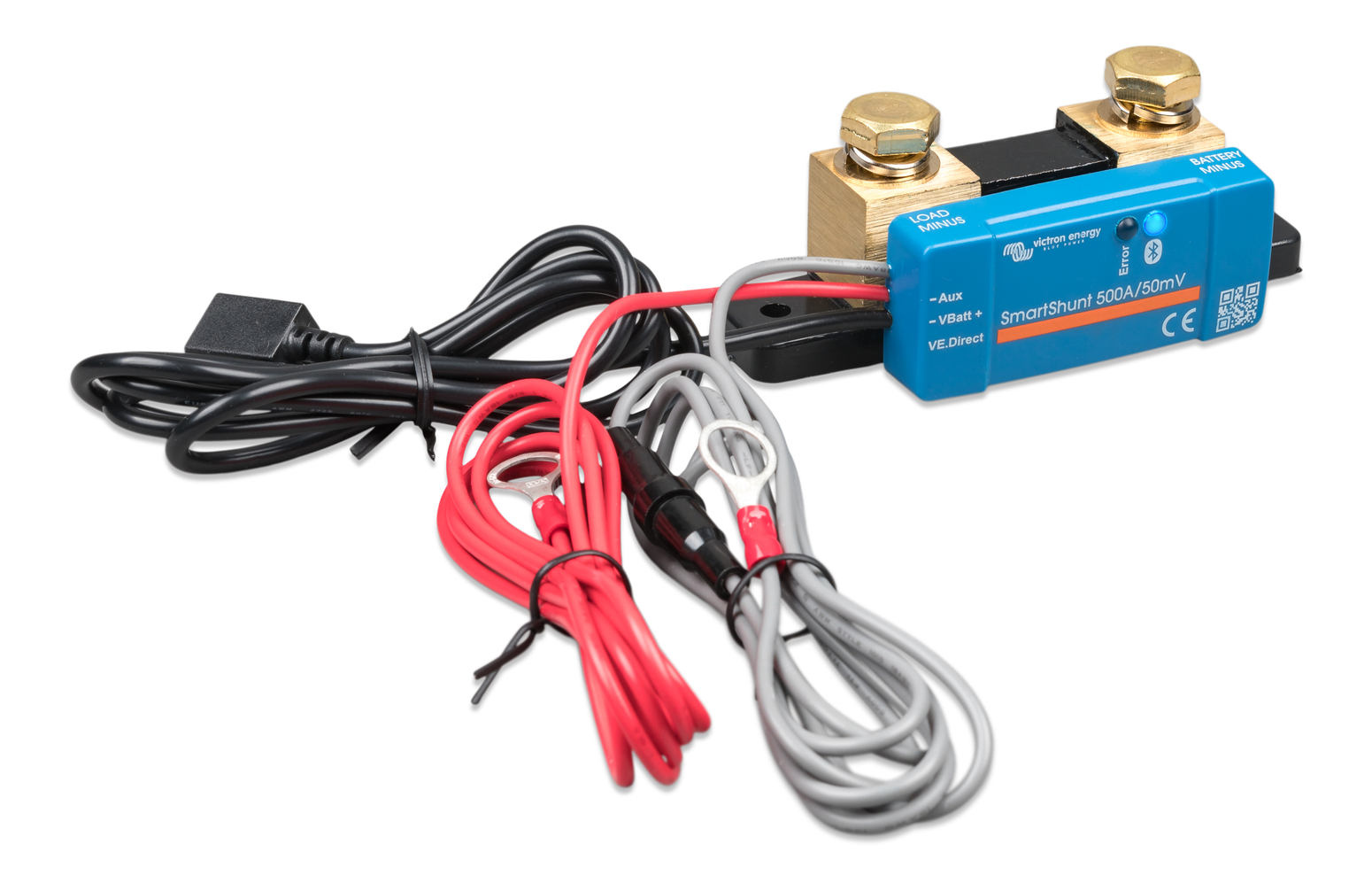

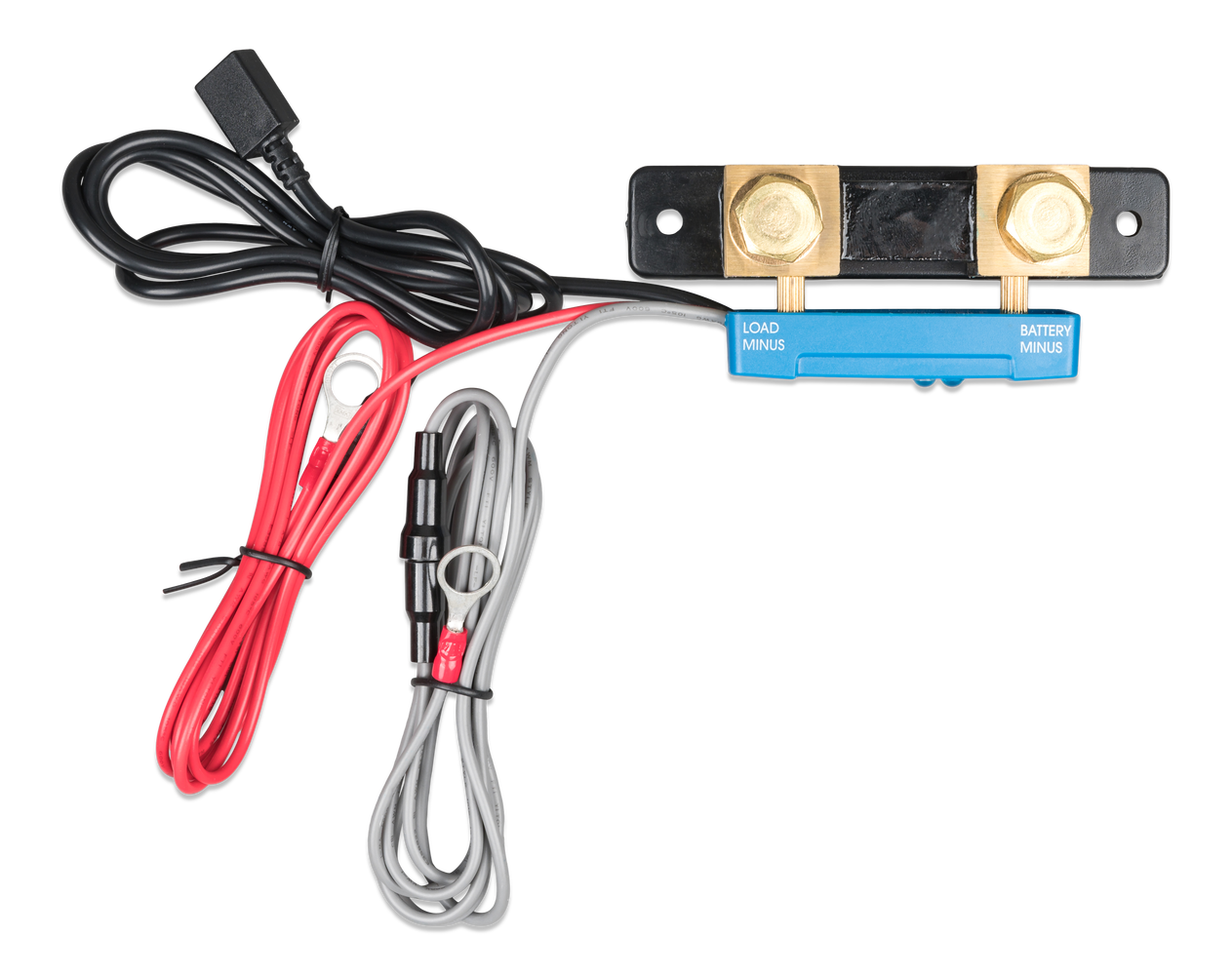

Victron SmartShunt 500A/50mV IP65
The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
Specifications:
- Supply voltage range 6.5 - 70 VDC
- Current draw < 1 mA
- Operating temperature range -40 +50 °C
- Temperature measurement range -20 +50 °C
- Current ± 0.01 A
- Voltage ± 0.01 V
- Amp hours ± 0.1 Ah
- State of charge (0 – 100 %) ± 0.1 %
- Time to go ± 1 min
- Protection category IP65
- Dimensions (h x w x d): 46 x 120 x 54 mm
.png)
Specifications
SKU SHU065150050
Brand Victron
GTIN 8719076057895
Product Category Battery Monitors
Dimensions (h x w x d)46 x 120 x 54 mm
NOTE: see full product specifications & further product info in the Description section on this page.
