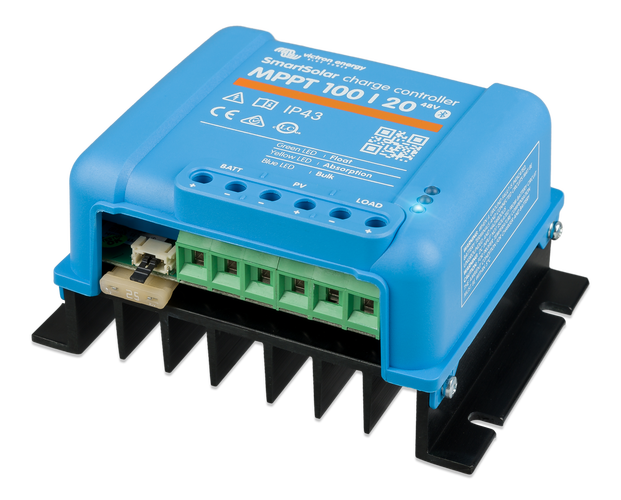

Victron SmartSolar MPPT 100/20 12/24/48V Charge Controller
SKU: SCC110020160R Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Victron SmartSolar MPPT 100/20 12/24/48V Charge Controller
- Battery voltage (auto-select) - 12/24/48V
- Rated charge current - 20A
- Nominal PV power, 12V 1a,b) - 290W
- Nominal PV power, 24V 1a,b) - 580W
- Max. PV short circuit current 2) - 20A
- Automatic load disconnect - Yes
- Max. PV open circuit voltage - 100V
- Peak efficiency - 98%
- Self-consumption - 25 / 15 / 10 mA
- Charge voltage 'absorption' - 14.4V / 28.8V / 57.6V (adj.)
- Charge voltage 'float' 13.8V / 27.6V / 55.2V (adj
- Charge algorithm - multi-stage adaptive
- Temperature compensation -16 mV / °C resp. -32 mV / °C
- Max. continuous load current - 20A / 20A / 1A
- Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
- Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
- Protection - Output short circuit / Over temperature
- Operating temperature -30 to +60°C (full rated output up to 40°C)
- Humidity 95%, non-condensing
- Colour Blue (RAL 5012)
- Power terminals 6 mm² / AWG10
- Protection category IP43 (electronic components), IP22 (connection area)
- Weight 0.65 kg
- Dimensions (d x w x h) - 60 x 113 x 100 mm
.png)
Specifications
SKU SCC110020160R
Brand Victron
GTIN 8719076043027
Product Category Solar Charge Controllers
Amps 20A
Operating temperature range Äì30¬∞C to +60¬∞C (full rated output up to 40¬∞C)
Dimensions 60 x 113 x 100 mm (D x W x H)
Weight (kg) 0.65
Charge Voltage 57.6V (adjustable)
Nominal Power 1160W
Charge Current (A) 20
Voltage (V) 48V
Protection Battery reverse polarity (fuse), Output short circuit and Over temperature
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What voltage is this recommended for?
This regulator is suitable for 12, 24 or 48V systems and will automatically adjust itself to a 12V or a 24V system the first time it is used. This is one time only though and if a different system voltage is required at a later stage you will need to manually adjust this using the Bluetooth app.
-
What size cable will I need to connect my 200W solar panel to the Victron SmartSolar MPPT 100/20 - 12/24/48V Charge Controller?
You can use 6mm² cable.
