Victron SmartSolar MPPT 150/60-MC4 Charge Controller
SKU: SCC115060210-310 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description

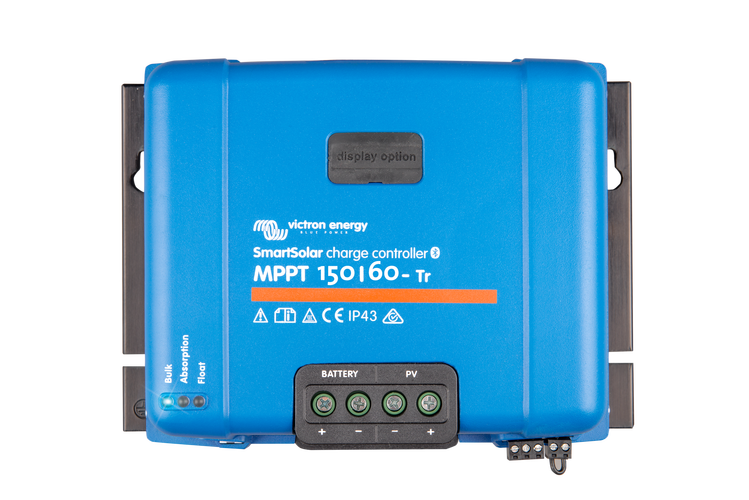

Victron SmartSolar MPPT 150/60 Charge Controller - Tr or MC4 Model
Solar charge controller
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN(long-range wide area network) device, available optionally.
Optional SmartSolar Control Display
By adding the SmartSolar Control Display you will be able to check the status of your Charger and battery-storage at a glance. Simply plug it into the face of your MPPT charger to provide you with real-time monitoring and set-up capabilities.
Bluetooth Smart built-in
The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%.
Flexible charge algorithm
Fully programmable charge algorithm (see the software page on Victrons website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection
Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.
Internal temperature sensor
Compensates absorption and float charge voltage for temperature.
Optional external battery voltage and temperature sensing via Bluetooth
A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
VE.Direct
For a wired data connection to a Color Control GX, other GX products, PC or other devices
Remote on-off
To connect for example to a VE.BUS BMS.
Programmable relay
Can be programmed to trip on an alarm, or other events.
Optional: SmartSolar pluggable LCD display
Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.
Specifications:
| Battery voltage | 12 / 24 / 48V Auto Select (software tool needed to select 36V) |
| Rated charge current | 60A |
| Nominal PV power, 12V 1a,b) | 860W |
| Nominal PV power, 24V 1a,b) | 1720W |
| Nominal PV power, 36V 1a,b) | 2580W |
| Nominal PV power, 48V 1a,b) | 3440W |
| Max. PV short circuit current 2) | 50A (max 30A per MC4 conn.) |
| Maximum PV open circuit voltage |
150V absolute maximum coldest conditions 145V start-up and operating maximum |
| Maximum efficiency | 98% |
| Self-consumption | Less than 35mA @ 12V / 20mA @ 48V |
| Charge voltage 'absorption' |
Default setting: 14.4 / 28.8 / 43.2 / 57.6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
| Charge voltage 'float' |
Default setting: 13.8 / 27.6 / 41.4 / 55.2V (adjustable: rotary switch, display, VE.Direct or Bluetooth) |
| Charge voltage 'equalization' | Default setting: 16.2V / 32.4V / 48.6V / 64.8V (adjustable) |
| Charge algorithm | multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm |
| Temperature compensation | -16 mV / -32 mV / -64 mV / °C |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
| Maximum altitude | 5000m (full rated output up to 2000m) |
| Environmental condition | Indoor, unconditioned |
| Pollution degree | PD3 |
| Data communication port | VE.Direct or Bluetooth |
| Remote on/off | Yes (2 pole connector) |
| Programmable relay | DPST AC rating: 240VAC / 4A DC rating: 4A up to 35VDC, 1A up to 60VDC |
| Parallel operation | Yes (notsynchronized) |
| Colour | Blue (RAL 5012) |
| PV terminals 3) |
35 mm² / AWG2 (Tr models) Two pairs of MC4 connectors (MC4 models) |
| Battery terminals | 35mm² / AWG2 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 3 kg |
| Dimensions (d x w x h) in mm |
Tr models: 95 x 250 x 185 mm MC4 models: 95 x 250 x 215 mm |
.png)
Specifications
SKU SCC115060210-310
Brand Victron
GTIN 8719076051381
Product Category Solar Charge Controllers
Amps 60A
Operating temperature range Äì30¬∞C to +60¬∞C (full rated output up to 40¬∞C)
Dimensions Tri Model 95 x 250 x 185 mm | MC4 Model 95 x 250 x 215 mm (D x W x H)
Weight (kg) 3
Charge Voltage Default Setting 14.4 / 28.8 / 43.2 / 57.6V (adjustable with rotary switch, display, VE.Direct or Bluetooth)
Nominal Power 12V 860W | 24V 1720W | 36V 2580W | 48V 3440W
Charge Current (A) 60
Voltage (V) 12 / 24 / 48V Auto Select
Protection Battery reverse polarity (fuse, not user accessible), PV reverse polarity, Output short circuit and Over temperature
NOTE: see full product specifications & further product info in the Description section on this page.
