Victron SmartSolar MPPT 250/85-Tr VE.Can Charge Controller
SKU: SCC125085411 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Victron SmartSolar MPPT 250/85-Tr VE.Can Charge Controller
Solar charge controller:
The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery bank.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damage.
MPPT: Ultra Fast Maximum Power Point Tracking:
The MPPT VE.Can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.
The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium and others.
Control Your Charger Remotely:
The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.
Daisy Chain Additional Units:
The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply “daisy chained” to each other with a single RJ45 cable between the individual units.
When connected to each other, all individual VE.Can SmartSolar chargers, will synchronize their charge stages. They can also send their data, via a single cable, to a GX monitoring device.
Remote Monitoring and Control:
If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).
SmartSolar Control Display:
The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device.

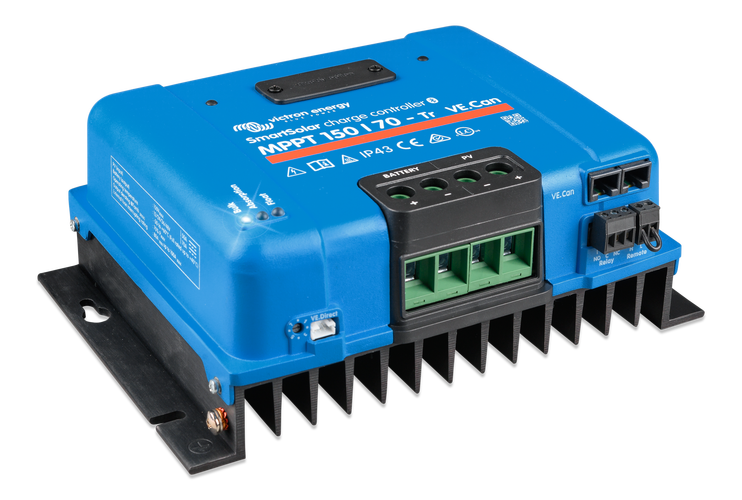

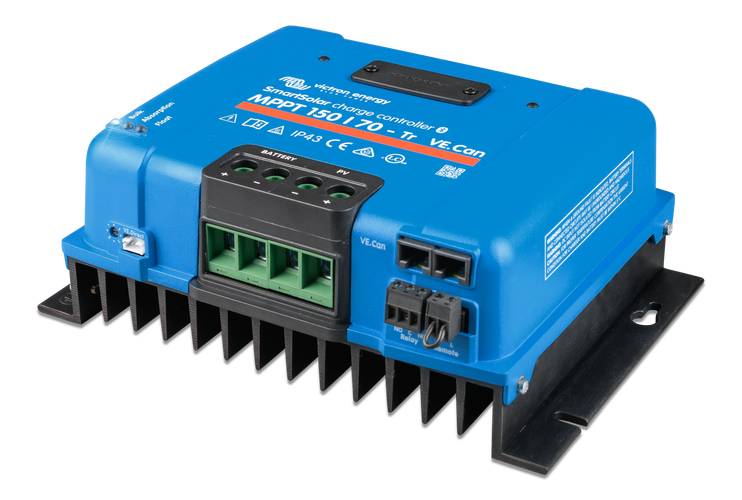

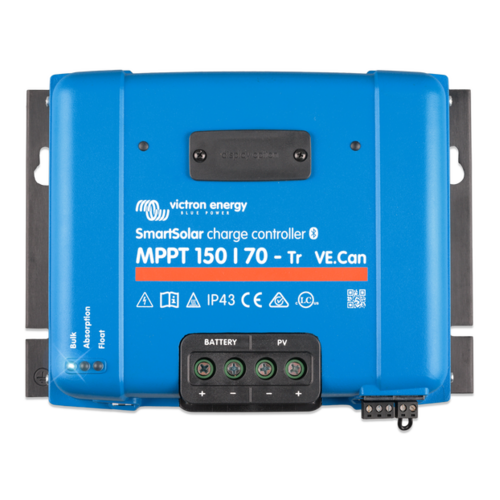

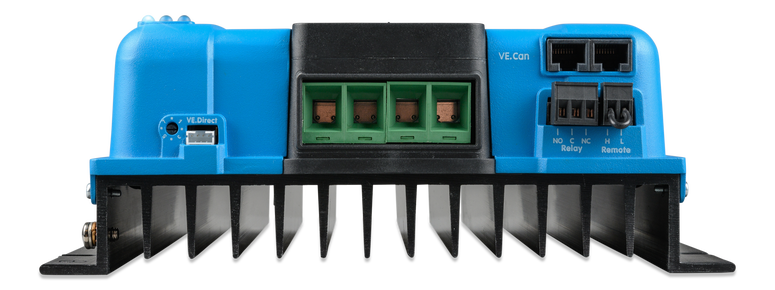

Please Note: The image shown is not the correct image for this model.
Specifications:
| Battery voltage | 12/24/48V Auto Select (36V: manual) |
| Rated charge current | 85A |
| Nominal PV power, 12V 1a,b | 1200W |
| Nominal PV power, 24V 1a,b) | 2400W |
| Nominal PV power, 36V 1a,b) | 3600W |
| Nominal PV power, 48V 1a,b) | 4900W |
| Max. PV short circuit current 2) | 70A (max 30A per MC4 conn.) |
| Maximum PV open circuit voltage |
250V absolute maximum coldest conditions 245V start-up and operating maximum |
| Maximum efficiency | 99% |
| Self-consumption | Less than 35mA @ 12V / 20mA @ 48V |
| Charge voltage 'absorption' | Default setting: 14.4 / 28.8 / 43.2 / 57.6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
| Charge voltage 'float' | Default setting: 13.8 / 27.6 / 41.4 / 55.2V (adjustable: rotary switch, display, VE.Direct or Bluetooth) |
| Charge voltage 'equalization' | Default setting: 16.2V / 32.4V / 48.6V / 64.8V (adjustable) |
| Charge algorithm | multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm |
| Temperature compensation | -16 mV / -32 mV / -64 mV / °C |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
| Maximum altitude | 5000m (full rated output up to 2000m) |
| Environmental condition | Indoor, unconditioned |
| Pollution degree | PD3 |
| Data communication port | VE.Can, VE.Direct and Bluetooth |
| Remote on/off | Yes (2 pole connector) |
| Programmable relay | DPST AC rating: 240VAC / 4A DC rating: 4A up to 35VDC, 1A up to 60VDC |
| Parallel operation | Yes (notsynchronized) |
| Colour | Blue (RAL 5012) |
| PV terminals | 35 mm² / AWG2 (Tr models) Three pairs of MC4 connectors (MC4 models |
| Battery terminals | 35mm² / AWG2 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 4.5kg |
| Dimensions (d x w x h) | 103 x 295 x 216 mm |
.png)
Specifications
SKU SCC125085411
Brand Victron
GTIN 8719076050896
Product Category Solar Charge Controllers
Amps 85A
Operating temperature range Äì30¬∞C to +60¬∞C (full rated output up to 40¬∞C)
Dimensions 103 x 295x 216 (D x W x H)
Weight (kg) 4.5
Charge Voltage Default Setting 14.4 / 28.8 / 43.2 / 57.6V (adjustable with rotary switch, display, VE.Direct or Bluetooth)
Nominal Power 12V - 1200W | 24V - 2400W
Charge Current (A) 85
Voltage (V) 12/24/48V Auto Select (36V manual)
Protection PV reverse polarity / Output short circuit / Over temperature
NOTE: see full product specifications & further product info in the Description section on this page.
