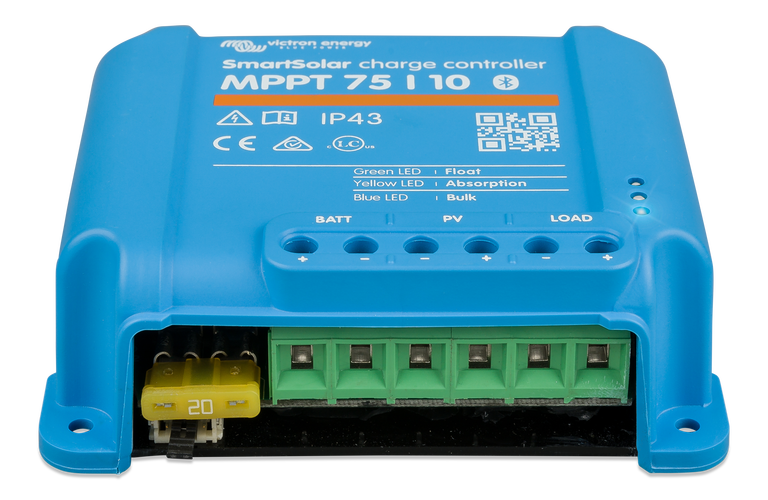

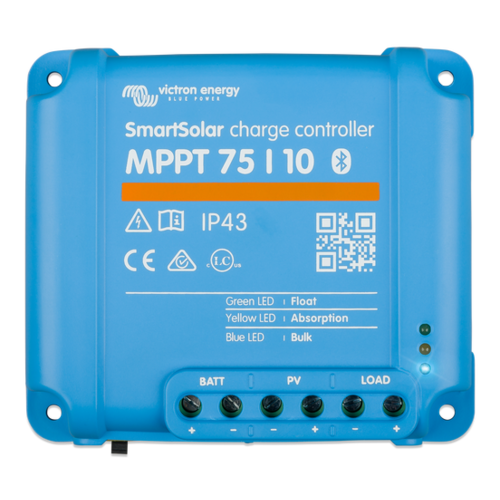

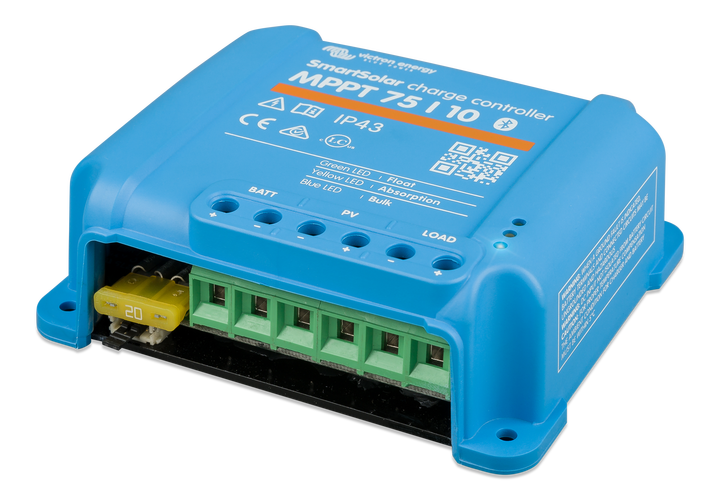

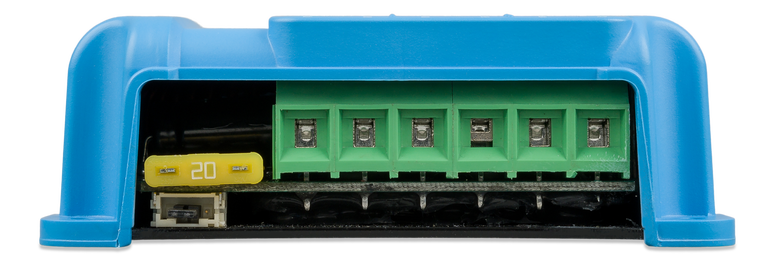

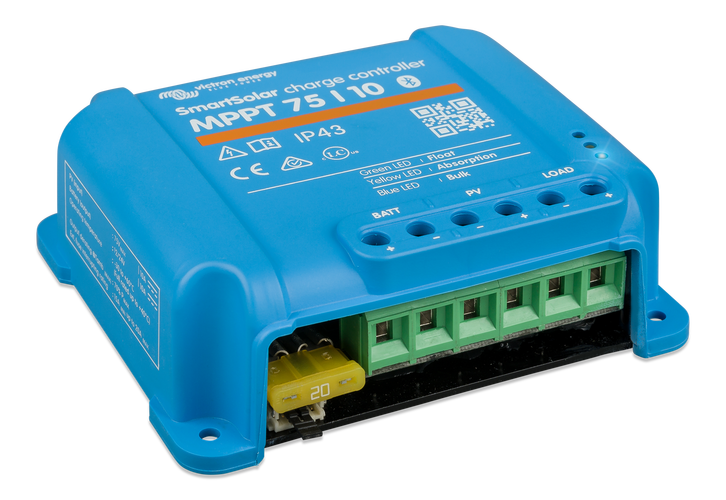

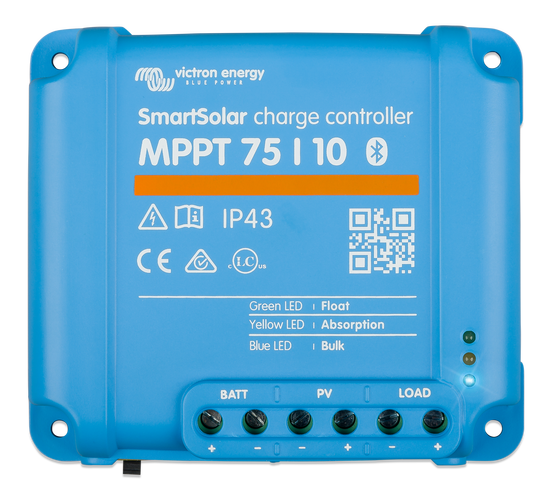

Victron SmartSolar MPPT 75/10 Charge Controller
SKU: SCC075010060R Learn More»
Free Shipping
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Click '+' to show more accessories
Description
Victron SmartSolar MPPT 75/10 Charge Controller
Solar charge controller:
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
MPPT: Ultra Fast Maximum Power Point Tracking:
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control:
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other devices via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.
Load output:
The intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.
Specifications:
- Battery voltage (auto-select) - 12/24V
- Rated charge current - 10A
- Nominal PV power, 12V 1a,b) - 145W
- Nominal PV power, 24V 1a,b) -290W
- Max. PV short circuit current 2) - 13A
- Automatic load disconnect - Yes
- Max. PV open circuit voltage - 75V
- Peak efficiency - 98%
- Self-consumption - 12V: 25 mA 24V: 15 mA
- Charge voltage 'absorption' - 14,4V / 28,8V (adjustable)
- Charge voltage 'float' 13,8V / 27,6V (adjustable)
- Charge algorithm - multi-stage adaptive
- Temperature compensation -16 mV / °C resp. -32 mV / °C
- Max. continuous load current - 15A
- Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
- Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
- Protection - Output short circuit / Over temperature
- Operating temperature -30 to +60°C (full rated output up to 40°C)
- Humidity 95%, non-condensing
- Colour Blue (RAL 5012)
- Power terminals 6 mm² / AWG10
- Protection category IP43 (electronic components), IP22 (connection area)
- Weight 0.5 kg
- Dimensions (d x w x h) - 40 x 113 x 100 mm
.png)
Show More
Specifications
SKU SCC075010060R
Brand Victron
GTIN 8719076040798
Product Category Solar Charge Controllers
Amps 10A
Operating temperature range Äì30¬∞C to +60¬∞C (full rated output up to 40¬∞C)
Dimensions 40 x 113 x 100 mm (D x W x H)
Weight (kg) 0.5
Charge Voltage 14.4V / 28.8V (adjustable)
Nominal Power 12V - 145W | 24V - 290W
Charge Current (A) 10
Voltage (V) 12/24V Auto Select
Protection Battery reverse polarity (fuse), Output short circuit and Over temperature
NOTE: see full product specifications & further product info in the Description section on this page.
