Victron VE.Bus BMS

SKU: BMS300200000 Learn More»
Victron VE.Bus BMS
Free Shipping
$224
In Stock1-2 Days Dispatch

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Description

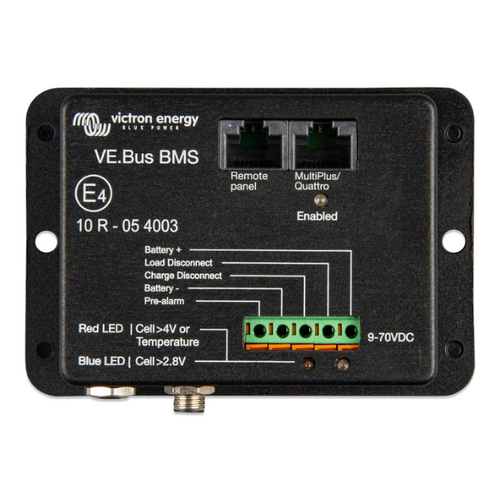

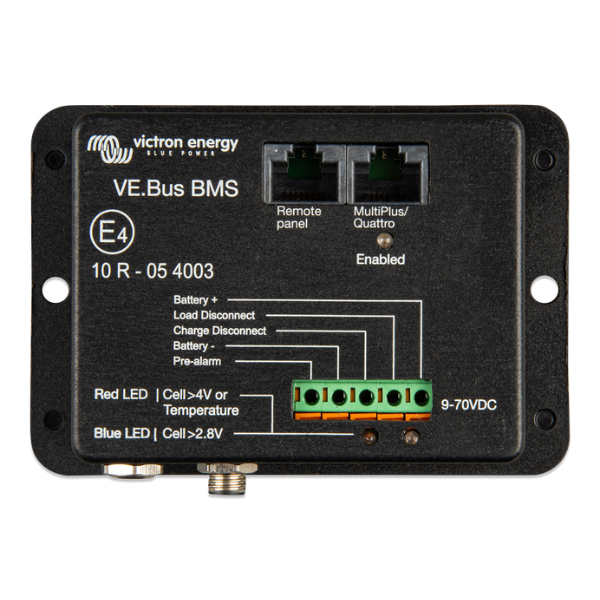

Victron VE.Bus BMS



The VE.Bus BMS protects each individual cell of a Victron lithium-iron-phosphate (LiFePO4 or LFP) battery. Each individual cell of a LiFePO4 battery must be protected against over-voltage, under-voltage and over-temperature. Victron LiFePO4 batteries have integrated Balancing, Temperature and Voltage control (acronym: BTV) and connect to the VE.Bus BMS with two M8 circular connector cord sets. The BTVs of several batteries can be daisy-chained. Please see our LiFePO4 battery documentation for details.

The BMS will:

  • Shut down or disconnect loads in case of the imminent cell under voltage.
  • Reduce charge current in case of imminent cell overvoltage or over temperature (VE.Bus products only, see below).
  • Shut down or disconnect battery chargers in case of imminent cell overvoltage or over temperature.



Specifications:

Input voltage range 9 – 70V DC
Current draw, normal operation 10 mA (excluding Load Disconnect current)
Current draw, low cell voltage 2mA
Load Disconnect output

Normally high

Source current limit: 2A

Sink current: 0 A (output free floating)

Charge Disconnect output

Normally high

Source current limit: 10mA

Sink current: 0 A (output free floating)

Pre-alarm output

Normally free floating

High (Vbat) in case of alarm, max. 1A (not short circuit proof)

VE.Bus communication port  Two RJ45 sockets to connect to all VE.Bus products
Operating temperature -20 to +50°C
Humidity Max. 95% (non-condensing)
Protection grade IP20
Material and colour ABS, matt black
Weight 0.1kg
Dimensions (d x w x h) 32 x 78 x 105 mm



Show More

Specifications

SKU BMS300200000

Brand Victron

GTIN 8719076021032

Product Category Batteries Other

Input Voltage 9-70V DC

Dimensions 05 x 75 x 32 mm (H x W x D)

Weight (kg) 0.1


NOTE: see full product specifications & further product info in the section on this page.
