Vitrifrigo DW100BT 95 Litre Single Compartment Freezer
SKU: A-051582 Learn More»
Description

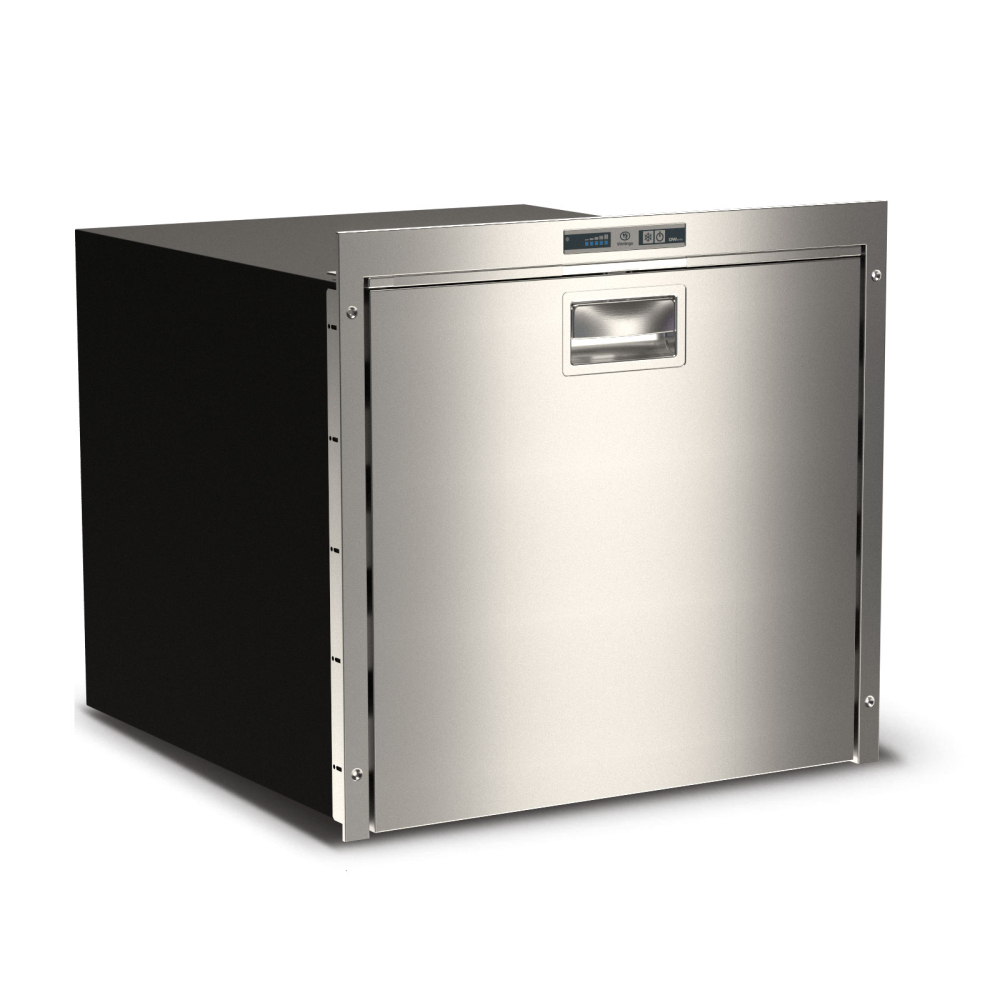

Vitrifrigo DW100BT 95 Litre Single Compartment Freezer
The Stainless Steel Drawer Series has been completely updated in both design and function. The stylish new square edge door design with the Steelock positive latch handle has the added functionality of a vent position for air circulation during periods of non-use preventing mould or bad odours in the fridge. The single section, stainless steel fitting frame allows the fridge to be securely fixed either with the door flush or proud of your furniture and has integrated vent slots to improve air flow and the efficiency of the cooling unit behind.
Features:
- Double Door Position. One single fitting frame for 2 versions: DOOR INSIDE and DOOR OUTSIDE
- Steelock. design and technology into a "top" lock (Flush Flange only)

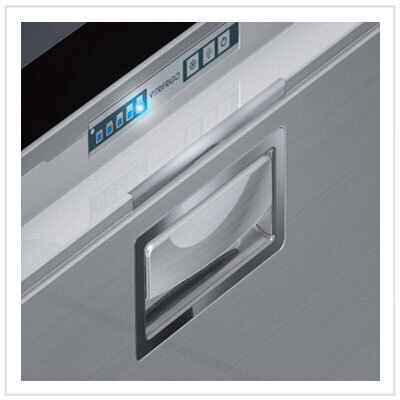

- LED Thermostat. An elegant thermostat for a perfect temperature setting

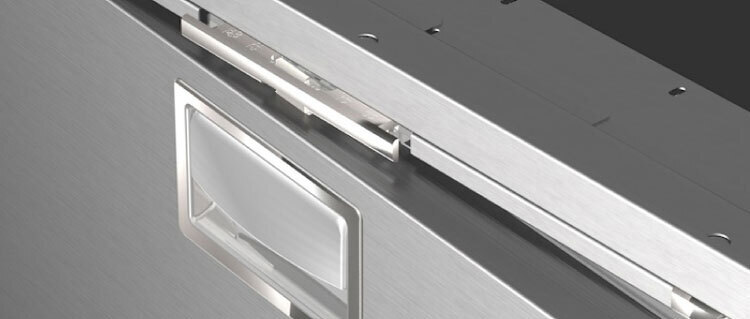

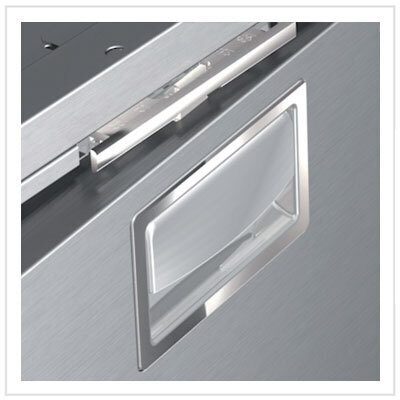

- Vent Position. The new Steelock latch has a vent position for air circulation during periods of non-use.
- Venting Frame. New hole system for better air circulation and cooling efficiency

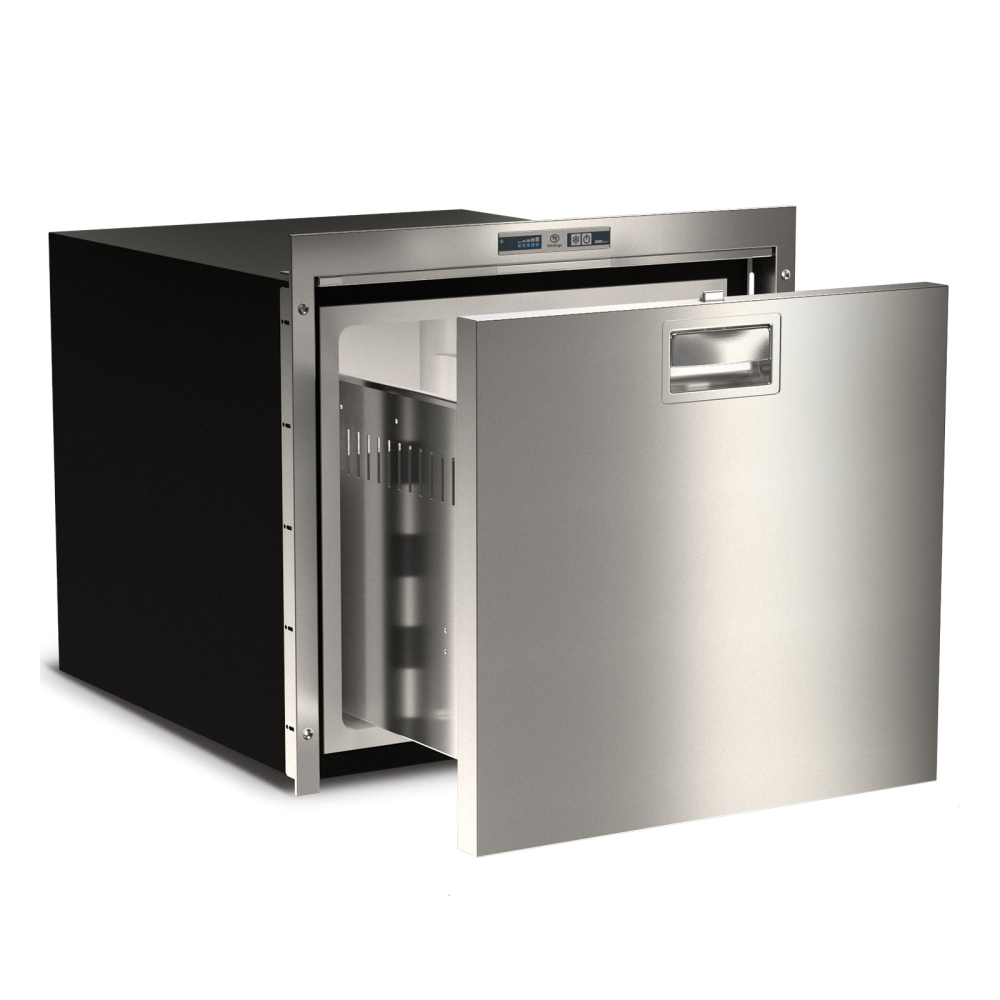

- Drawers. multi purpose spacious and sturdy drawers
- Stainless steel 316. Models of the drawer series are made of stainless steel 316
- Led light. LED light for a perfect lighting in your fridge
Specifications:
- Total volume: 95L
- Net weight: 32kg
- Power supply: 12/24Vdc (also available with dual electronic box 12/24Vdc - 100-240Vac 50/60Hz)
- Nominal consumption: 52W

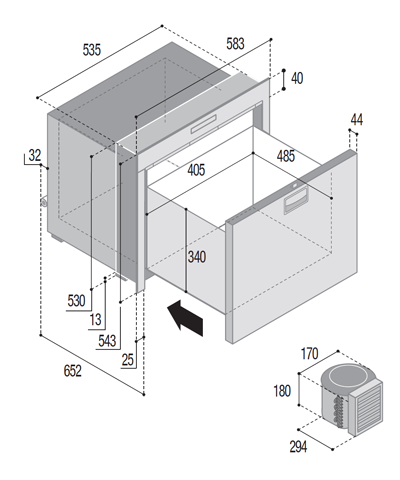

- Overall width: 583mm
- Overall height: 556mm
- Overall depth: 652mm
NOTE: 12/24Vdc. Please note: the compressor must be mounted horizontally.
Specifications
SKU A-051582
Brand Vitrifrigo
GTIN 9339051008941
Product Category RV Drawer Fridges
Fridge Voltage 12 / 24 V
Total Capacity (L) 95
Fridge Width (mm) 583
Fridge Height (mm) 556
Fridge Depth (mm) 652
Weight (kg) 32
Average Power Consumption 52 Watts
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Will this fridge drain my car battery?
It all depends at which voltage level the fridge stops drawing power from your battery.
For example, the Dometic CD-30 will cut off at 10.4V. You can connect a draw fridge to your start battery, but you will need to be conscious of battery drain while the car is not running, and the start battery is not being charged. Therefore, we always recommend connecting a DC fridge of any type, to an auxiliary battery.
If you do intend to connect the draw fridge to your start battery, then it would be a good idea to invest in battery protection. Enerdrive have a range of Battery Guards in various Amp ratings. The battery guards can be programmed to disconnect the load (Fridge) at a pre-determined voltage.
-
When installing this fridge into our RV, how much space is required around the unit?
We would recommend a buffering around the perimeter of the fridge of at least 100mm when storing inside an enclosure. Many portable fridge manufacturers will recommend up to around 200mm of buffering gap specifically around the fridge's vents for optimal performance.
As always, please check the Product Manual for installation advice.
-
I’m wondering if this fridge, has a low voltage protection?
Hi, great question!
A compressor fridge as this draw fridge is, will not run if the battery voltage is too low. In this way, the fridge will not draw on the battery.
-
I’m looking for a draw fridge with auto select between 12V/24V, does this fridge have it?
Yes, this fridge has an auto select.
