Vitrifrigo DW70BT Stainless Steel Drawer Freezer 75L
SKU: 002994 Learn More»
Caravan Freezer Draw
Currently FREE with the Vitrifrigo DW70BT Stainless Steel Drawer Freezer 75L is:
Description

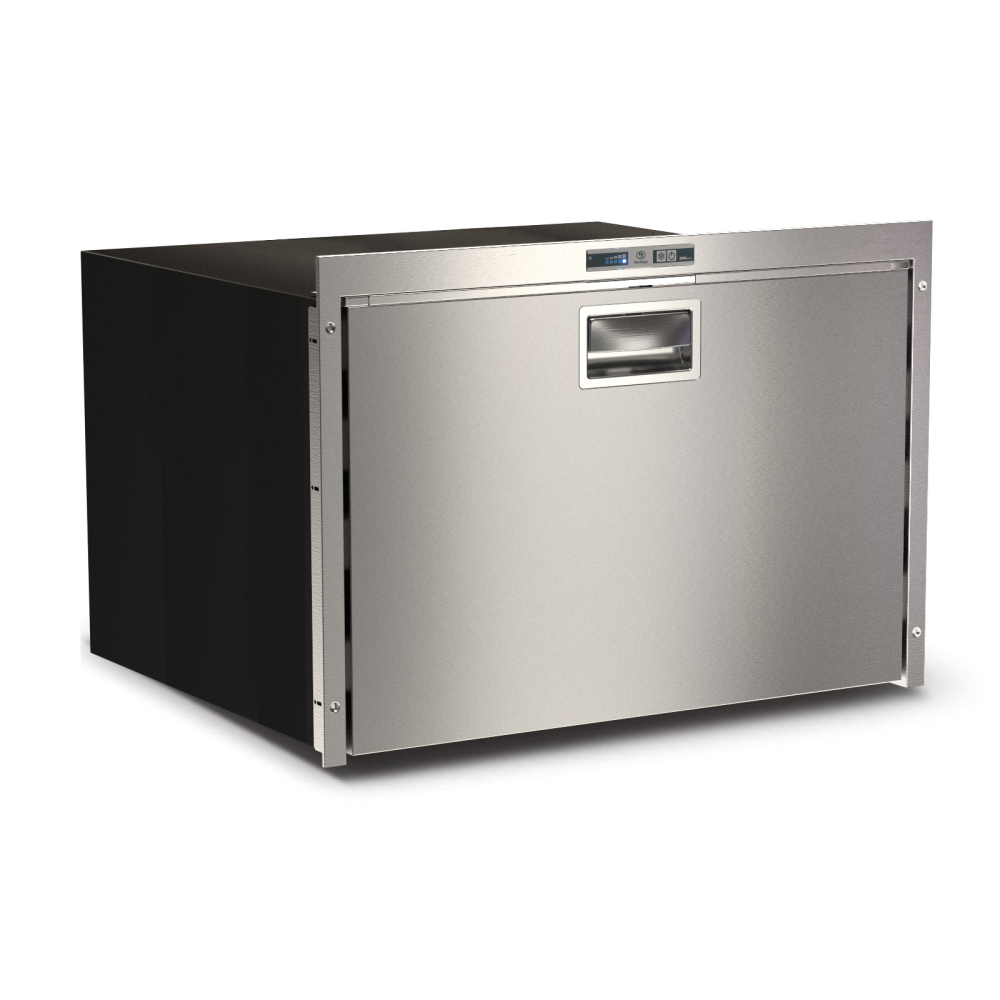

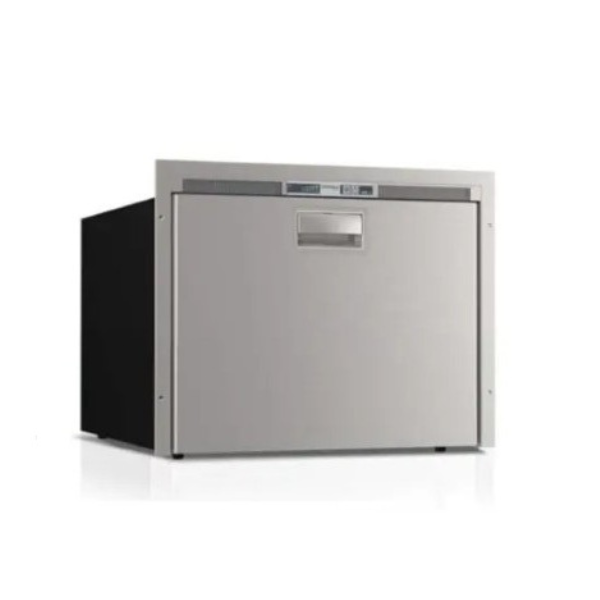

Vitrifrigo DW70BT Stainless Steel Drawer Freezer 75L
The DW70 OCX2 BTX single-compartment drawer freezer has a total capacity of 75 liters.
Crafted from stainless steel, the DW70 OCX2 BTX ensures high durability and long-lasting performance.
With its clean and minimalist design, it discreetly blends into kitchens and pantries of any style. Additionally, the stainless steel material makes it easy to clean and sanitize.
Features:

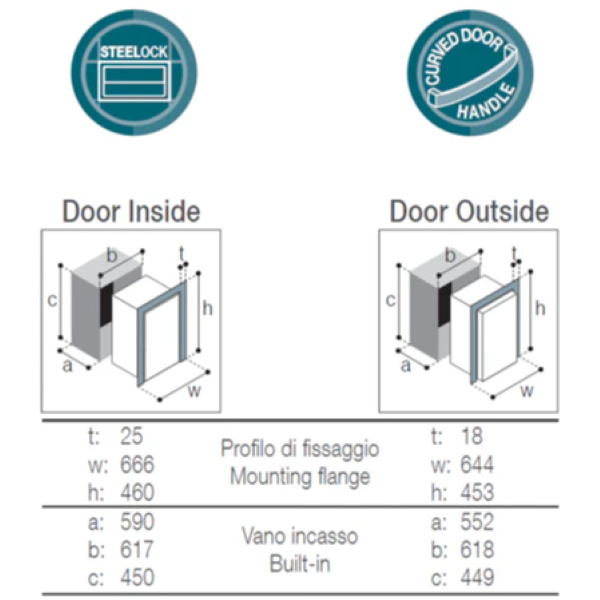

- Double Door Position. One single fitting frame for 2 versions: DOOR INSIDE and DOOR OUTSIDE
- Steelock. design and technology into a "top" lock (Flush Flange only)
- LED Thermostat. An elegant thermostat for a perfect temperature setting
- Internal icemaker. The ultimate plus inside your refrigerator (DW100 excluded)
- Vent Position. The new Steelock latch has a vent position for air circulation during periods of non-use.
- Venting Frame. New hole system for better air circulation and cooling efficiency

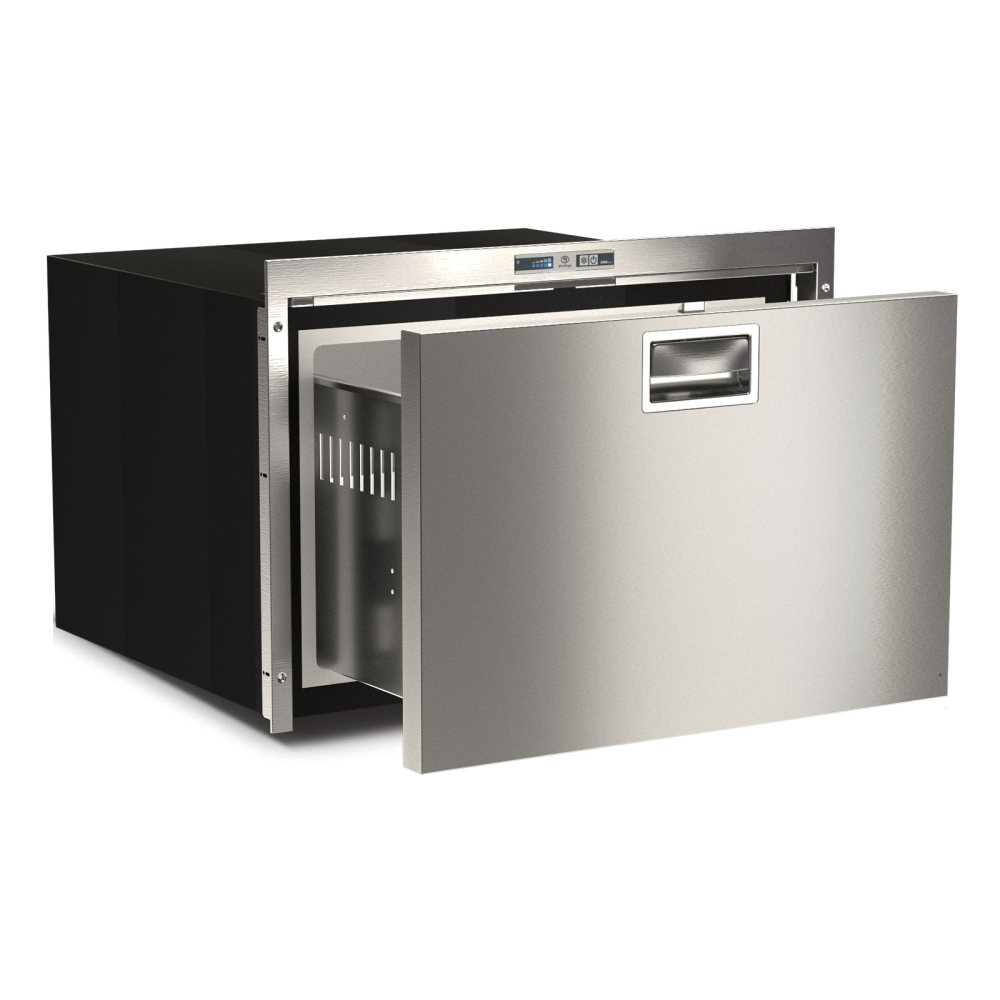

- Drawers. multi purpose spacious and sturdy drawers
- Stainless steel 316. Models of the drawer series are made of stainless steel 316
- Led light. LED light for a perfect lighting in your fridge
Specifications
- Total volume: 75L
- Net weight: 38kg
- Power supply: 230Vac (115Vac optional)
- Nominal consumption: 168W (115vac) - 140W (230Vac)

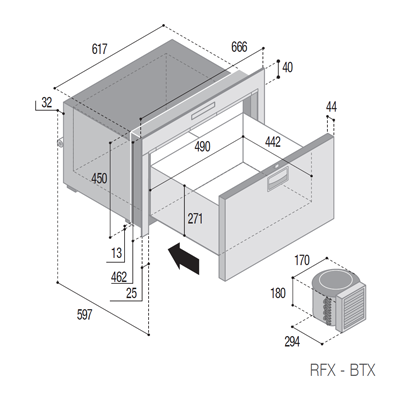

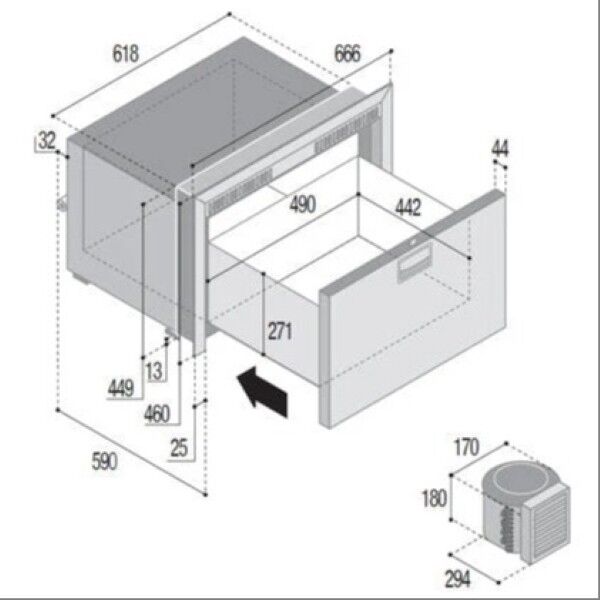

- Overall width: 666mm
- Overall height: 475mm
- Overall depth: 597mm
Not what your looking for? Feel free to browse the rest of our range of Vitrifrigo Fridges, 2 Way Fridges, Fridge & Freezer Draws & Caravan Fridges - For any further infomation or to speak our fridge experts dial -1800 RV PARTS
Specifications
SKU 002994
Brand Vitrifrigo
Product Category Drawer Fridges
Fridge Voltage 12 / 24 V
Total Capacity (L) 75
Fridge Width (mm) 666
Fridge Height (mm) 475
Fridge Depth (mm) 597
Average Power Consumption 12V: 3.5 Amps | 24V: 1.75 Amps
Weight (kg) 38
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Will this fridge drain my car battery?
It all depends at which voltage level the fridge stops drawing power from your battery.
For example, the Dometic CD-30 will cut off at 10.4V. You can connect a draw fridge to your start battery, but you will need to be conscious of battery drain while the car is not running, and the start battery is not being charged. Therefore, we always recommend connecting a DC fridge of any type, to an auxiliary battery.
If you do intend to connect the draw fridge to your start battery, then it would be a good idea to invest in battery protection. Enerdrive have a range of Battery Guards in various Amp ratings. The battery guards can be programmed to disconnect the load (Fridge) at a pre-determined voltage.
-
When installing this fridge into our RV, how much space is required around the unit?
We would recommend a buffering around the perimeter of the fridge of at least 100mm when storing inside an enclosure. Many portable fridge manufacturers will recommend up to around 200mm of buffering gap specifically around the fridge's vents for optimal performance.
As always, please check the Product Manual for installation advice.
-
I’m wondering if this fridge, has a low voltage protection?
Hi, great question!
A compressor fridge as this draw fridge is, will not run if the battery voltage is too low. In this way, the fridge will not draw on the battery.
-
I’m looking for a draw fridge with auto select between 12V/24V, does this fridge have it?
Yes, this fridge has an auto select.
