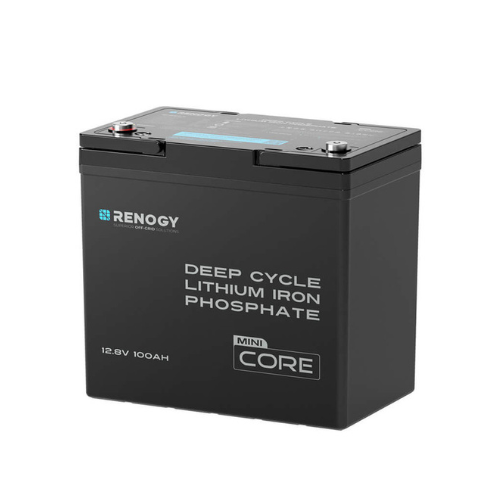

Renogy 12V 100Ah Core Mini Lithium Battery
SKU: RBT12100LFP-M-AU Learn More»
Description
Renogy 12V 100Ah Core Mini Lithium Battery
Features
- Renogy's smallest 12.8V 100Ah LFP Battery (Group 22NF)
- Low-temperature cut-off for safer charging in freezing weather
- Works with a Renogy 300A Battery Shunt for remote monitoring
- Can be mounted on its sides to fit in cramped spaces
- IP65-rated & vibration-resistant for enhanced outdoor performance
Benefits
- 10X Longer Lasting Power. The latest 12.8V 100Ah Core Mini LFP Battery is built in with UL-listed, EV-grade prismatic cells, boating 5000 cycles at 80% depth of discharge. The lifetime and performance blow away lead-acid batteries of the same capacity.
- Peak Power Output. Capable of discharging up to 300A within 5 seconds, this portable power beast can smoothly pump up energy-demanding appliances like microwaves that require a high start current
- Enhanced Vibration Resistance. The integrated metallic cell spacers securely hold the cells in place, preventing movement and minimizing the risk of cell damage or short circuits, even during rugged off-road driving or rough water conditions.
- Tested & Trusted Power. Backed by rigorous testing & certifications including UL, FCC, and CE, this mini-sized 12.8V 100Ah LiFePO4 Battery delivers unmatched reliability and is ready for a wide range of uses.
Includes:
- 1x Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery
- 2x Long Terminal Bolts (M8 x 1.25 x 15 mm)
- User Manual
Specifications
SKU RBT12100LFP-M-AU
Brand Renogy
GTIN 840315230361
Product Category Batteries
Battery Voltage 12V
Amp Hours (Ah) 100
Battery Length (mm) 229
Battery Width (mm) 138
Battery Height (mm) 213
Battery Weight (kg) 9.9
Operating Temperature -35 ℃ - 45℃
Maximum Charge Current 100A
Battery Capacity 1280Wh
Humidity 0% to 95%
Operating Humidity 10% to 95%
Discharge Temperature Range -20°C to 60°C
Nominal Voltage 12.8V
Maximum Continuous Discharge Current 100A
Rated Capacity 100 Ah (0.5C, 25°C)
Operation Temperature Range Charge 0°C to 55°C
Protection Rating IP65
Connection method Series & Parallel (4S4P)
Battery Voltage Range 10V to 14.8V
Certifications Certifications MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Maximum Solar Input Power 900 W (12V Battery);1800W (24V Battery);2000 W (36V Battery);3200W (48V Battery)
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Can this battery be used in series to build a 24-volt system?
Yes. You can connect Renogy 12.8V 100Ah Core Mini Batteries in series for a 24V off-grid power system.
-
Does this Core Mini LFP battery have low-temperature cut-off?
Yes. It is built in with low-temperature charging protection to prevent the battery from charging below 32°F / 0°C.
-
How many Renogy 12.8V 100Ah Core Mini Series Batteries can I connect at most?
You can connect up to 16 batteries in series and parallel to expand power to 20.48kWh. Batteries of the same model and similar capacity are required.
-
Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?
No. This battery does not have a Bluetooth port for a Bluetooth Module. However, you can connect your battery with a Renogy 300A Battery Shunt (sold separately), which can send the data to the DC Home app via Bluetooth so you can keep track of battery status in real time.
-
How to recharge my LiFePO4 batteries?
Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend a solar charge controller/charger compatible with lithium iron phosphate batteries.
