Victron Busbar 150A 6Pole & Cover

SKU: VBB115060020 Learn More»
$55
In StockDispatch 5-7 Days

CALCULATE SHIPPING:

Description

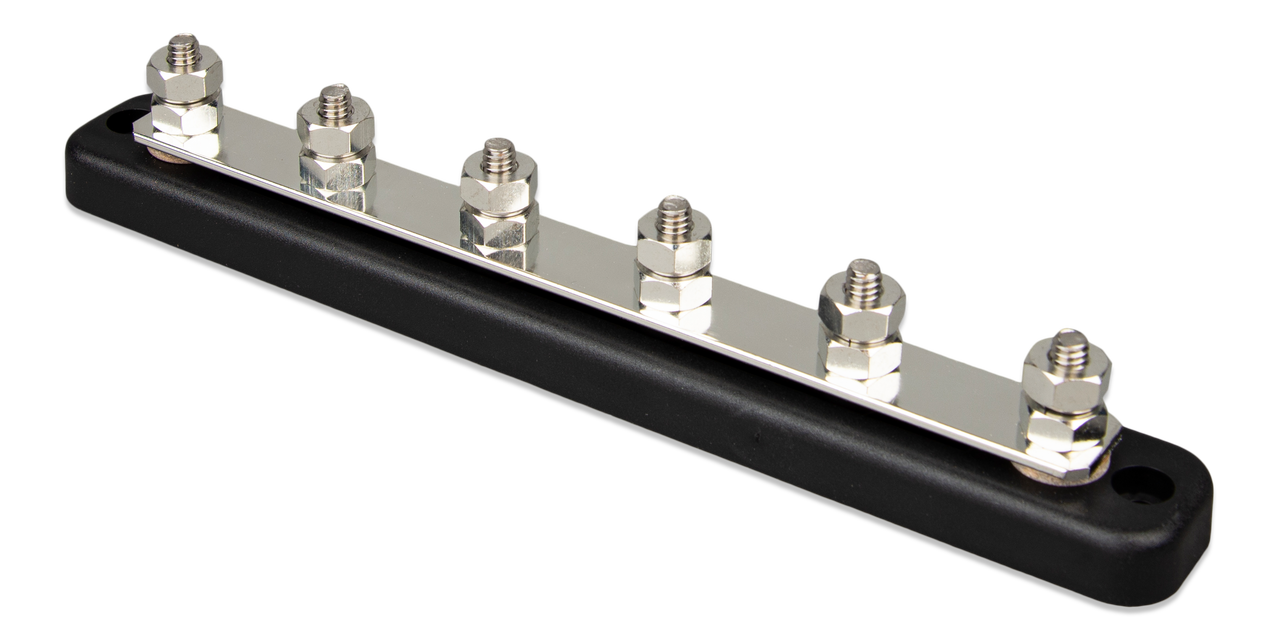

Victron Busbar 150A 6Pole & Cover



Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.



Specifications:

  • Max. current: 150 A
  • Max. Voltage: 70 VDC
  • Terminal diameter: ¼ inch / 6.35 mm
  • Terminal height: 0.67 inch / 17 mm
  • Terminal material: Stainless steel
  • Hex nut material: Tin-plated copper
  • Recommended torque: 60 lbf·inch / 7 N·m
  • Busbar strip material: Tin-plated copper (1.4 x 18 mm)
  • Base material: ABS, black, UL 94 V-0
  • Cover material: Clear Polycarbonate, UL 94 HB
  • Weight, 6 terminals: 0.27 kg
  • Dimensions (hxwxd): (with cover) 45 x 231.7 x 31.8 mm

Show More

Specifications

SKU VBB115060020

Brand Victron

GTIN 8719076052203

Product Category Fuses and Breakers
