Victron Orion-Tr Smart 12/24-10A (240W) DC-DC charger
SKU: ORI122424120 Learn More»
Description
Victron Orion-Tr Smart 12/24-10A (240W) DC-DC charger
- For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged.
- For lithium batteries absorption time is fixed, default 2 hours.
- Alternatively, a fixed output voltage can be chosen.
The output current will reduce at high ambient temperature.
When installed with the screw terminals oriented downwards.
No special tools needed for installation.
- Typically, marine application with limited corrosion
- Decrease noise from one battery system that will affect another battery system
No Solar Regulator in the DC-DC Charger:
Victron have chosen to separate the charger and the solar regulators, these are the advantages:
- You can choose the correct solar regulator to match your panels with the best efficiency for the solar charging
- The solar can be charging into the battery system simultaneously with the onboard vehicle charging
- Without a solar regulator, the DC-DC charger will stay cheaper
Specifications:
- Input voltage range (1) - 8-17V
- Under voltage shut down - 7V
- Under voltage restart - 7,5V
- Nominal output voltage - 24,2V
- Output voltage adjust range - 20-30V
- Output voltage tolerance - +/- 0,2V
- Output noise - 2mV rms
- Cont. output current at nominal output voltage and 40°C - 10A
- Maximum output current (10 s) at nominal output voltage - 15A
- Short circuit output current - 25A
- Cont. output power at 25°C - 280W
- Cont. output power at 40°C - 240W
- Efficiency - 88%
- No load input current - < 100mA
- Standby current - Less than 1mA
- Galvanic isolation - 200V dc between input, output and case
- Operating temperature range -20 to +55°C (derate 3% per °C above 40°C)
- Humidity - Max. 95% non-condensing
- DC connection - Screw terminals
- Maximum cable cross-section - 16 mm² AWG6
- Weight - 1.3 kg (3 lb)
- Dimensions hxwxd - 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
- Warranty - 5 Years
Specifications
SKU ORI122424120
Brand Victron
GTIN 8719076046073
Product Category Battery Chargers
Output Current Rating (Amps) 10
Dimensions 130 x 186 x 70 (LxWxH) mm
Weight (kg) 1.3
Charger Voltage 12V
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-

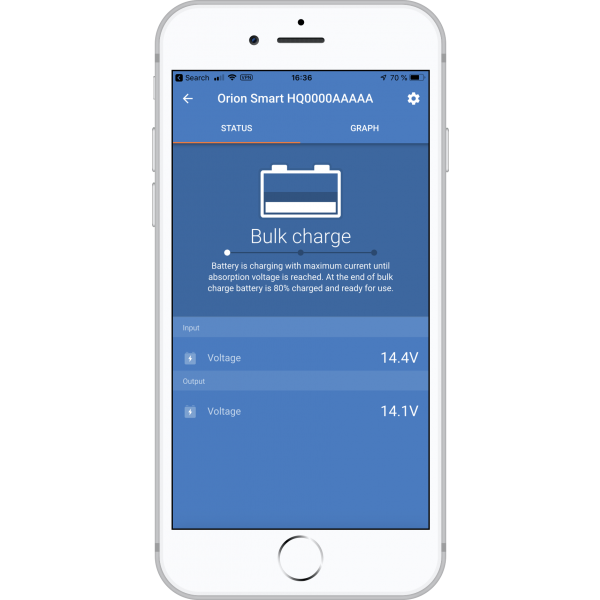

What is a "Smart" DC to DC Charger?
"Smart" DC to DC Chargers allow you to monitor and set changes easily and is only available in Victron energy systems. You can connect your Bluetooth device (Smartphone) to the Victron Charger via the Victron Connect APP available in App Store, Google Play, Mac app and Download for Windows.
-
Hi, I was wondering why the Victron DC to DC chargers do not have a solar regulator?
Victron sell their solar regulators separately in order to keep the price of the DC to DC chargers low. You are able to purchase the corresponding solar regulator to match your solar panels.
-
Can you please explain the difference between isolated and non-isolated Victron DC to DC chargers?
Isolated DC-DC chargers have one negative connection for each battery and there is no internal connection between the negatives and are used for systems that require limiting corrosion (Typically marine applications) and preventing noise on one battery system from effecting the other battery system. You can use either charger for systems that do not require isolation.
